Description

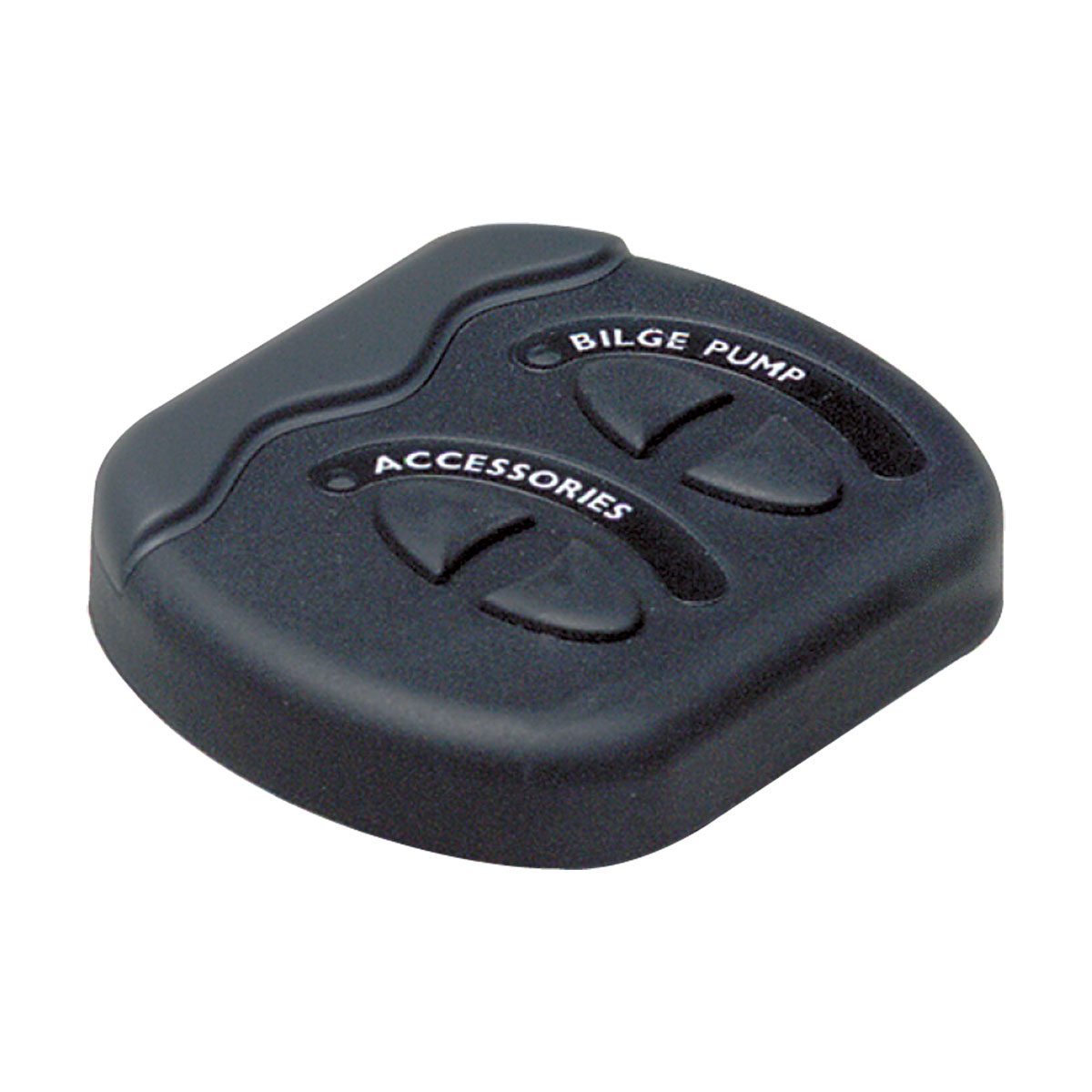

BEP Contour Gen 2 Splash Proof Switch Panel – Black
Injection moulded plastic panel with modern contour styling. The switch tray features a rubber mounting
gasket and integral cover seal. The cover includes a clear plastic membrane with rubber over-mould allowing
the flexibility to operate the switches while providing a clear window for label backlighting. Red LED indicates systems on. Both grey and blue interchangeable contour wave strips are included and custom colours are available, subject to minimum quantities. Mounting screws are bidden beneath the cover. Panels can be mounted horizontally or vertically due to the unique label design. A joiner is available for multiple panel installations. Available in 2, 4 or 6 gang versions with a choice of grey or white facia and with or without fuses. Fused versions have each pair of switches connected to a behind panel mounted AF type blade fuse holder. Supplied as standard with two position, on/off switches and 113694, 28 piece label set. Three position switches, momentary switches and label set 113695 (below) are also available. Suitable for 12 or 24 volt systems. Switches rated to 16 amp. Overall width 63mm. Cut out width 42mm. Intrusion 25mm. Mount screws 3mm roundhead.
Gang: 2 Fuses: No Overall Length: 71mm Cut Out Length: 36mm
