Description
Blue Sea HD-Series Heavy Duty Selector Battery Switch with AFD
Blue Sea HD-Series Heavy Duty Selector Battery Switch with AFD
Switches isolated battery banks to all loads or combines battery banks to all loads
– Includes AFD (Alternator Field Disconnect)
– Make-before-break contact design allows switching between battery banks without power interruption
– Ignition protected—safe for installation aboard gasoline powered boats

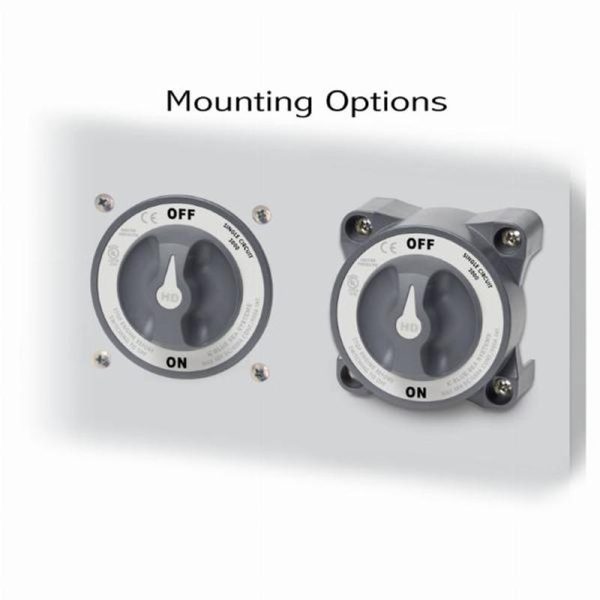

– Case design allows surface or rear panel mounting
– Accepts two 4/0 AWG (95mm²) battery cables
Part Number Switch Type Switch Positions Battery Combine Max Voltage Terminal Stud Torque Battery Inputs Cable Clearance For 4/0 AWG Cables Cable Quantity to Meet Ratings Cable Size to Meet Ratings Mounting Holes Stud Material Terminal Stud Size Weight
BSS-3003 Selector 4 Position 4 Yes 32V DC 220 in-lb (24.86 Nm) 2 1.10in (27.94 mm) Two Cables / Terminal 4/0 AWG (120mm²) Accept 1/4″ (M6) Screw Tinned Copper 1/2″ (M12) 0.57kg
Length 76.2 x Height 228.6 x Width 165.1
