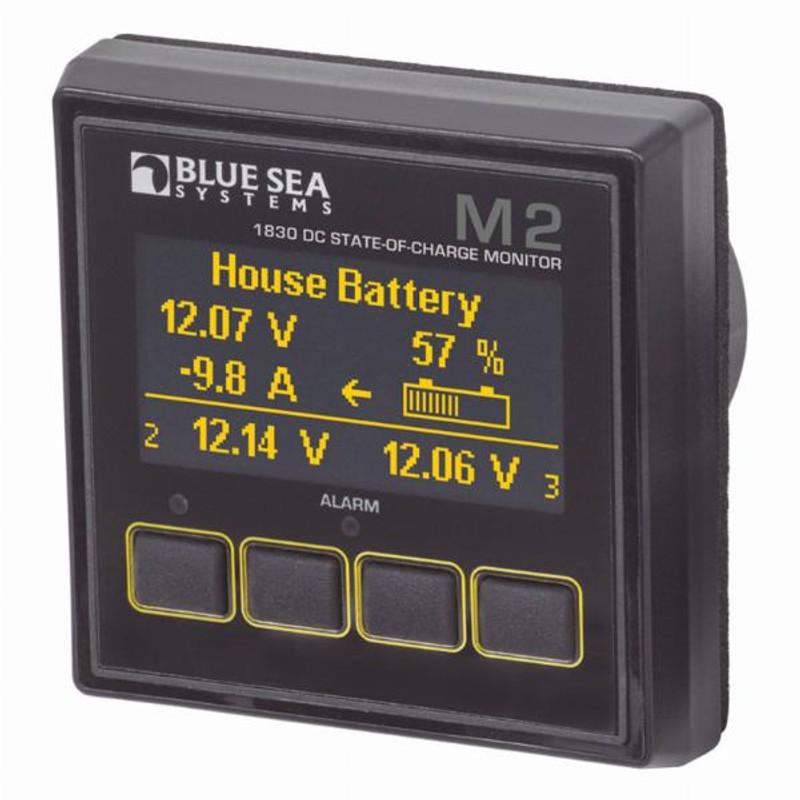

Blue Sea M2 DC Multimeter with SoC
Blue Sea M2 DC Multimeter with SoC
Accurately measure and monitor the state-of-charge of your batteries. Supports programmable shunt ratios.
– Accurately measures and monitors State-of-Charge of 1 bank
– Measures 3 voltages and 1 current
– Supports programmable shunt ratios
– External relay activation
Part Number Meter Function Maximum Voltage Resolution Input Voltage Alarms Current Range Display Size Maximum Power Consumption Minimum Power Consumption Voltage Accuracy Weight
BSS-1830 Current State-of-Charge Voltage 8 to 70V to 5000A 12V, 24V, 48V 0.01V DC 7-70V DC High Current High/Low Voltage Low Battery -500 to 500A 55mm x 28mm 1.00 Watt 0.3 Watt ± 1.0% 1.81kg
Length 137 x Height 69 x Width 194
