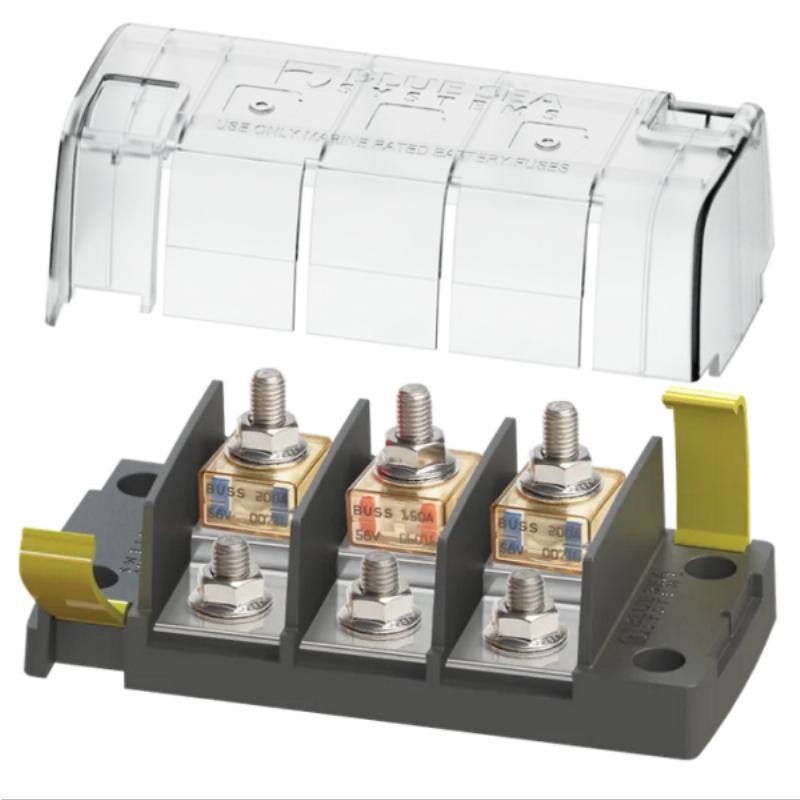

BLUE SEA – MRBF Surface Mount Independent Source 3 Fuse Block / BS-5194
HIGHLIGHTS
- Accommodates three MRBF fuses for consolidated high amperage circuit protection.
- Ideal for 3 output battery chargers.
- Clip-on insulating cover satisfies ABYC/USCG insulation requirements.
- Versatile wiring options allow all wires to come out a single side.
- Label recesses accommodate Blue Sea Systems Square Format labels for easy circuit identification.
- One-piece stainless flange nuts ensure safe and secure connections.
- Fuses sold separately.
SPECIFICATIONS
- PART NUMBER: BS-5194
- IGNITION PROTECTED: YES
- MAXIMUM AMPERAGE: 240A per circuit
- MAXIMUM VOLTAGE: 58V DC
- MOUNTING: Surface Mount M5 (#10)
- MAXIMUM TORQUE: 100 in-lb (11.3 Nm)
- TERMINAL STUD SIZE: M8 (5/16″-18)
- WEIGHT 0.54 kg (1.20 lb)
