Description

Description

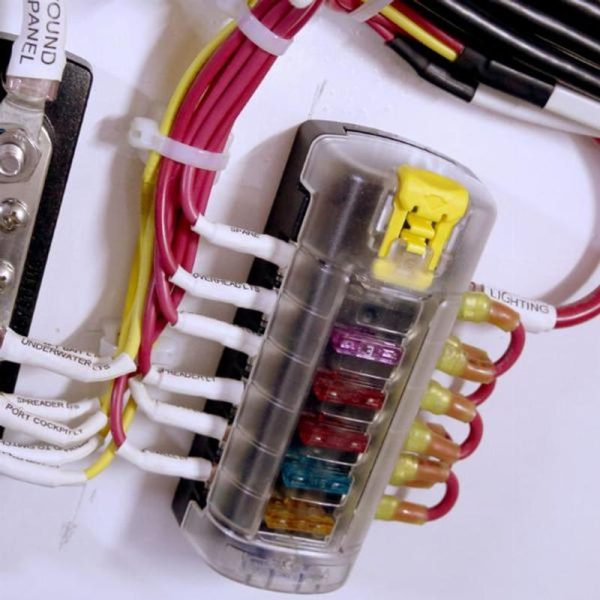

BLUE SEA – ST Blade Fuse Block – 6 Independent Circuits with Cover / BS-5035

HIGHLIGHTS

  • Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system.
  • Clear insulating cover with label recesses accepts Small Format Labels.
  • Spare fuse holder in cover.
  • Accepts ring or snap fork type terminals.
  • Includes two (2) terminal block jumpers.

SPECIFICATIONS

  • PART NUMBER: BS-5035
  • CIRCUITS: 6
  • MAXIMUM AMPERAGE: 30A per circuit / 40A per jumped circuit group
  • MAXIMUM VOLTAGE: 32V DC
  • MOUNTING: #8 Screw (M4)
  • SCREW TERMINAL TORQUE: 18 in-lb (2.03 Nm)
  • SCREW TERMINAL TYPE: #8-32 Screws with captive star lock washer
  • WEIGHT: 0.16 kg (0.35 lb)

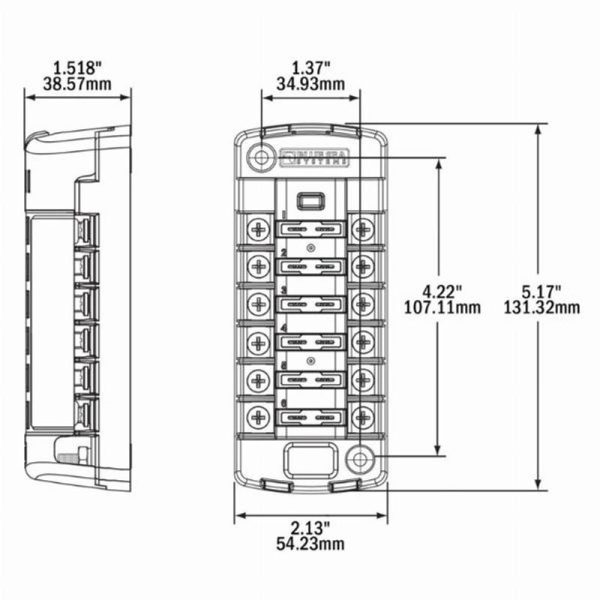

OVERALL DIMENSIONS (LENGTH x WIDTH x HEIGHT): 99mm x 185mm x 45mm
