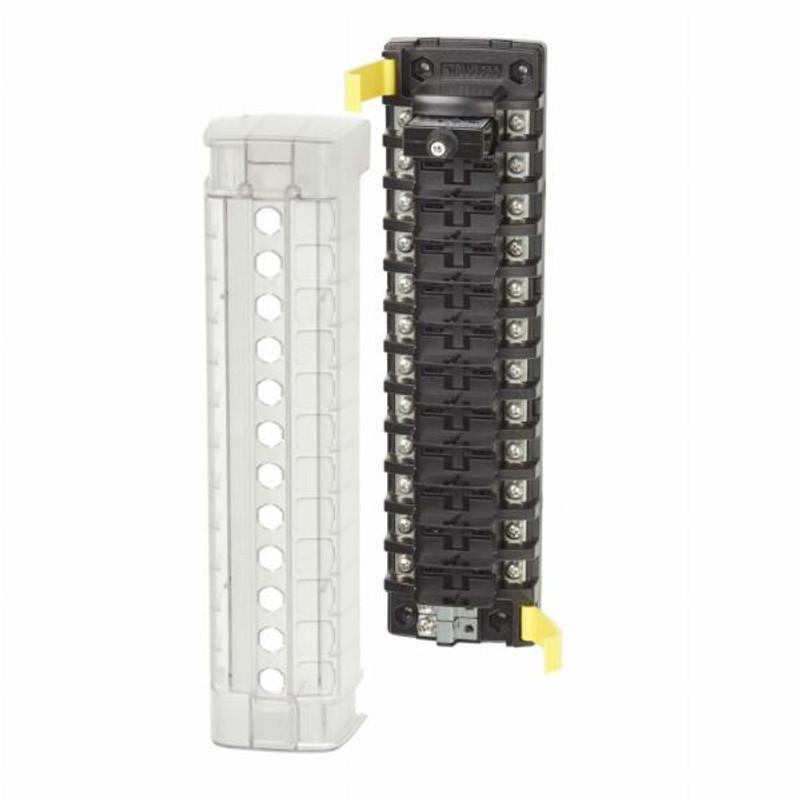

Blue Sea ST CLB Circuit Breaker Block - 12 Independent Circuits
Click to enlarge

BLUE SEA ST CLB Circuit Breaker Block – 12 Independent Circuits / BS-5051

Original price was: $186.84.Current price is: $175.96. inc GST

or 4 payments of $43.99 with Wizit learn more

BLUE SEA ST CLB Circuit Breaker Block – 12 Independent Circuits / BS-5051

Pay by  Add to cart.

Out of Stock

ENQUIRY!
Add to wishlist
Compare
SKU: BS-5051 Category:

UPC:

Condition:  New

Out of Stock

NOTE - Please call us to check availability & leadtimes prior to ordering as not all Blue Seas items are carried in stock.

Description

Description

BLUE SEA ST CLB Circuit Breaker Block – 12 Independent Circuits / BS-5051

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install.

The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

HIGHLIGHTS

  • Quick connect clips allow circuit breakers to snap easily into place.
  • Tin-plated copper busses and screw terminals.
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements.
  • Easy to open clip on cover.
  • Breakouts allow wire access in two directions.
  • Accepts ring terminals.
  • Optional push button waterproof boots or dress nuts can be installed over cover.
  • Accepts square labels.

SPECIFICATIONS

  • PART NUMBER: BS-5051
  • CIRCUITS: 12
  • MAXIMUM AMPERAGE: 32A (PER CIRCUIT) / 40A (PER JUMPED CIRCUIT GROUP)
  • MAXIMUM VOLTAGE: 32V DC
  • MOUNTING: #8 Screw (M4) or #8 Nut
  • SOURCE: INDEPENDENT SOURCE
  • MINIMUM OPERATING TEMPERATURE: -10° C
  • MAXIMUM OPERATING TEMPERATURE: 60° C

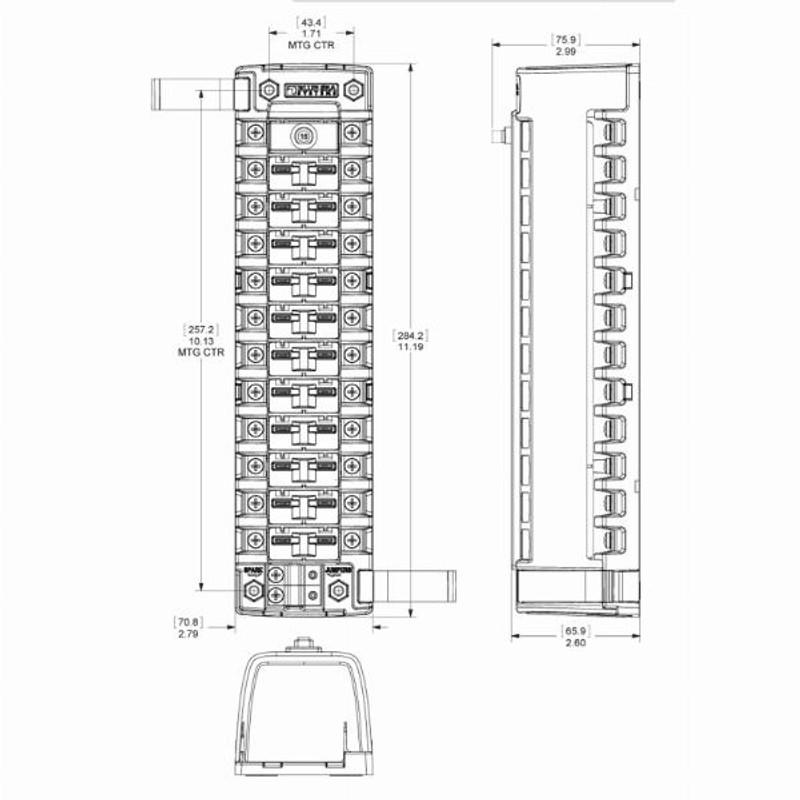

  • MOUNTING CENTERS: 10.13″ / 257.3mm
  • SCREW TERMINAL TYPE: #8-32 Screws with Captive Star Lock Washer
  • HEIGHT: 284.23 mm (11.19″)
  • WEIGHT: 0.68 kg (1.50 lb)
