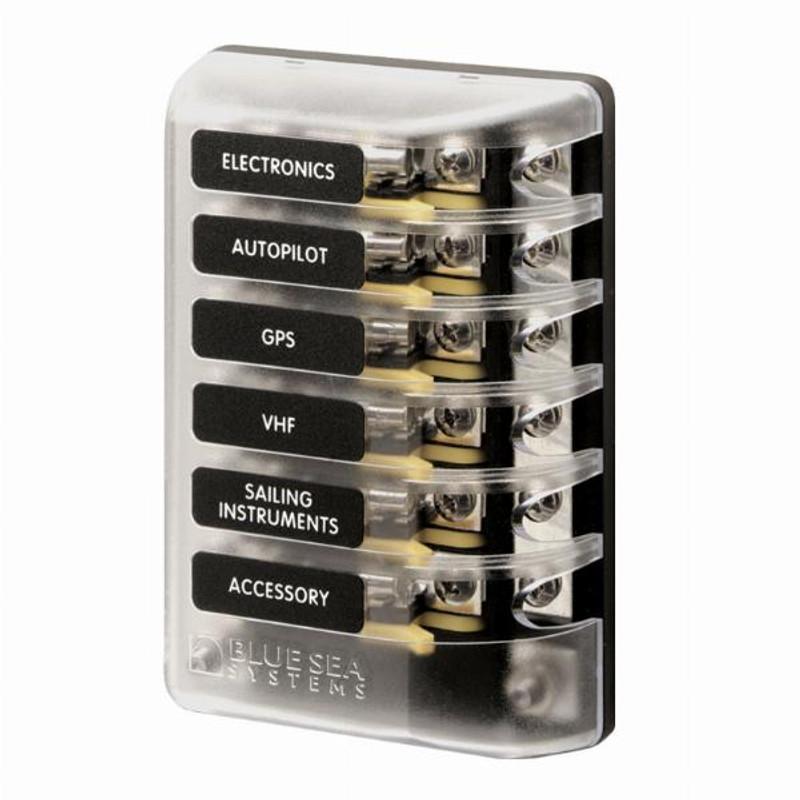

Blue Sea ST Glass 6 Circuit Fuse Block with Negative Bus and Cover
Blue Sea ST Glass 6 Circuit Fuse Block with Negative Bus and Cover Innovative design allows for labeling, spare fuse storage, and easy fuse removal
– Clear insulating cover with label recesses for accept Large Format Labels
– Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
– Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
– Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses
Part Number Maximum Amperage Maximum Voltage Mounting Negative Bus Base Material Cover Material Screw Terminal Type Weight
BSS-5015 100A per block 30A per circuit 32V DC #10 Screw Yes Reinforced Polycarbonate Polycarbonate #8-32 with Captive Star Lockwasher 0.26kg

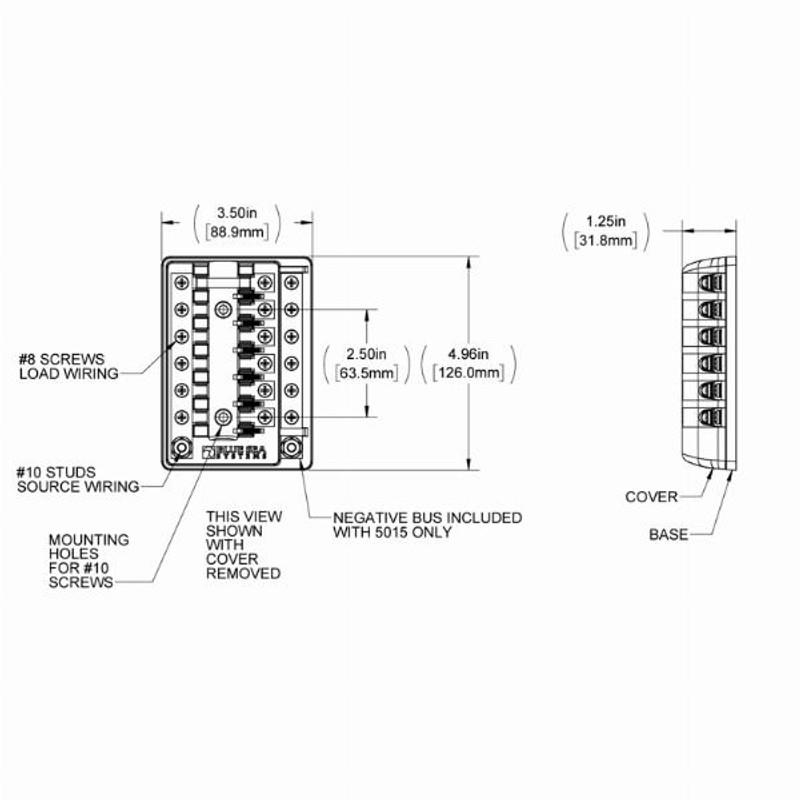

Length 99 x Height 40 x Width 183
