Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 blank circuit positions
BLUE SEA Surface Mount System Panel Enclosure - 3 Blank Circuits / BS-3116
Click to enlarge

BLUE SEA Surface Mount System Panel Enclosure – 3 Blank Circuits / BS-3116

Original price was: $1,098.29.Current price is: $1,034.31. inc GST

or 4 payments of $258.58 with Wizit learn more

BLUE SEA Surface Mount System Panel Enclosure – 3 Blank Circuits / BS-3116

Pay by  Add to cart.

Out of Stock

ENQUIRY!
Add to wishlist
Compare
SKU: BS-3116 Category:

UPC:

Condition:  New

Out of Stock

NOTE - Please call us to check availability & leadtimes prior to ordering as not all Blue Seas items are carried in stock.

Description

Description

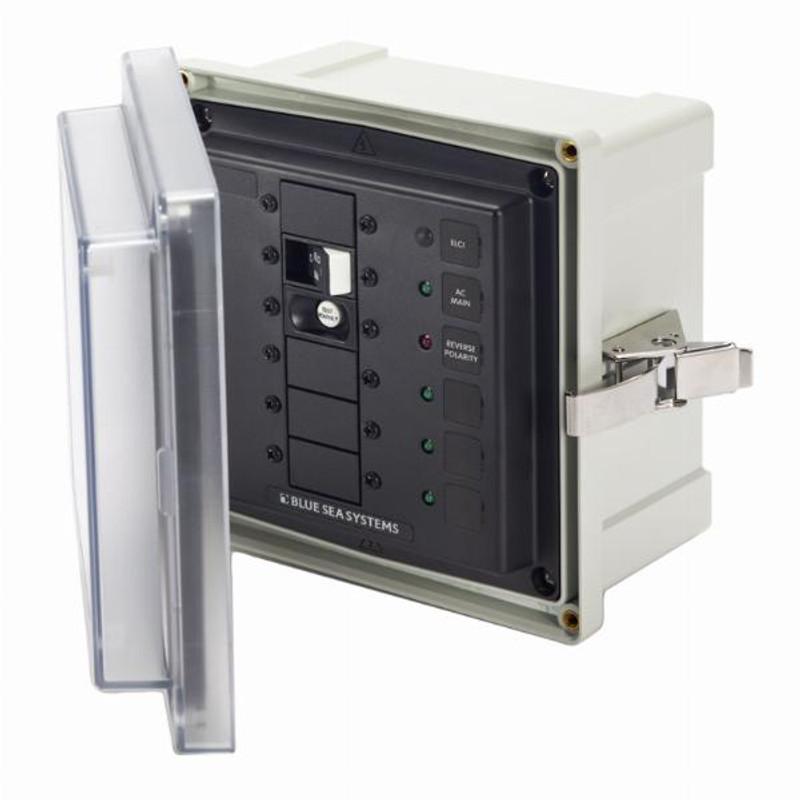

BLUE SEA Surface Mount System Panel Enclosure – 3 Blank Circuits / BS-3116

Panel enclosure for ELCI Main circuit breakers and other large frame devices.

Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet.

HIGHLIGHTS

  • Includes one 120/240V AC / 50A ELCI Main and one blank position.
  • Blank apertures for custom breaker loading.
  • Glass filled polycarbonate mounting box.
  • Clear cover allows easy view of circuit breaker status.
  • Overlapping cover for strength and increased gasket protection.
  • Oversized, formed in place seamless PUR gasket.
  • Easily removable stainless steel hinge pin for unobstructed installation.
  • Stainless steel latch secures cover without penetrating the enclosure.
  • Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers.
  • Stainless steel mounting hardware included.
  • Includes waterproof glands.
  • LED lights for back lighting and ON indication.

SPECIFICATIONS

  • PART NUMBER: BS-3116
  • MINIMUM OPERATING TEMPERATURE: -35° C
  • MAXIMUM OPERATING TEMPERATURE: 66° C
  • COVER SCREWS AND HARDWARE: 10-32 Stainless Steel
  • ENCLOSURE SIZE: 6.0″ x 6.0″ x 4.0″ (152mm x 152mm x 102mm)
  • EXTERIOR OVERALL DIMENSIONS: 7.6″ x 7.4″ x 4.7″ (192mm x 188mm x 120mm)
  • MOUNTING HARDWARE: 1/4″ Diameter, #12 (6 mm)
  • WEIGHT: 3.18 kg (7.00 lb)
