Description
Jabsco “Hotshot” HD6 Washdown Pump 12 Volt 70 PSI P601J-219N-4A with 25 foot Hose
The largest, most powerful Jabsco washdown pump, the HotShot HD6 features a wider diameter motor with a powder-coated shell, cast aluminium end bells and lower housing to improve pressure capability and life.
The new Jabsco HOTSHOT series of automatic deckwash pumps offer high water flow and very high pressure to blast the deck, cockpit or fishing areas clean with ease. These robust 5 chamber diaphragm pumps have a sealed pressure switch, a patented injection moulded diaphragm and a large heavy duty motor brushes which significantly extends the pump life by up to 50%
Pumping 6 gallons per minute at almost 70psi, this is an extremely reliable high-flow and high-pressure diaphragm pump.
The HotShot HD6 will provide years of clean decks and satisfaction.
Kit includes:
- 1 x HotShot HD6 Washdown Pump 70 PSI
- 2 x 3/4″ straight hose barb
- 1 x 3/4″ GHT fittings
- 1 x 90° 40 mesh quick connect strainer
- 1 x Deluxe trigger nozzle & quick connect hose adapters

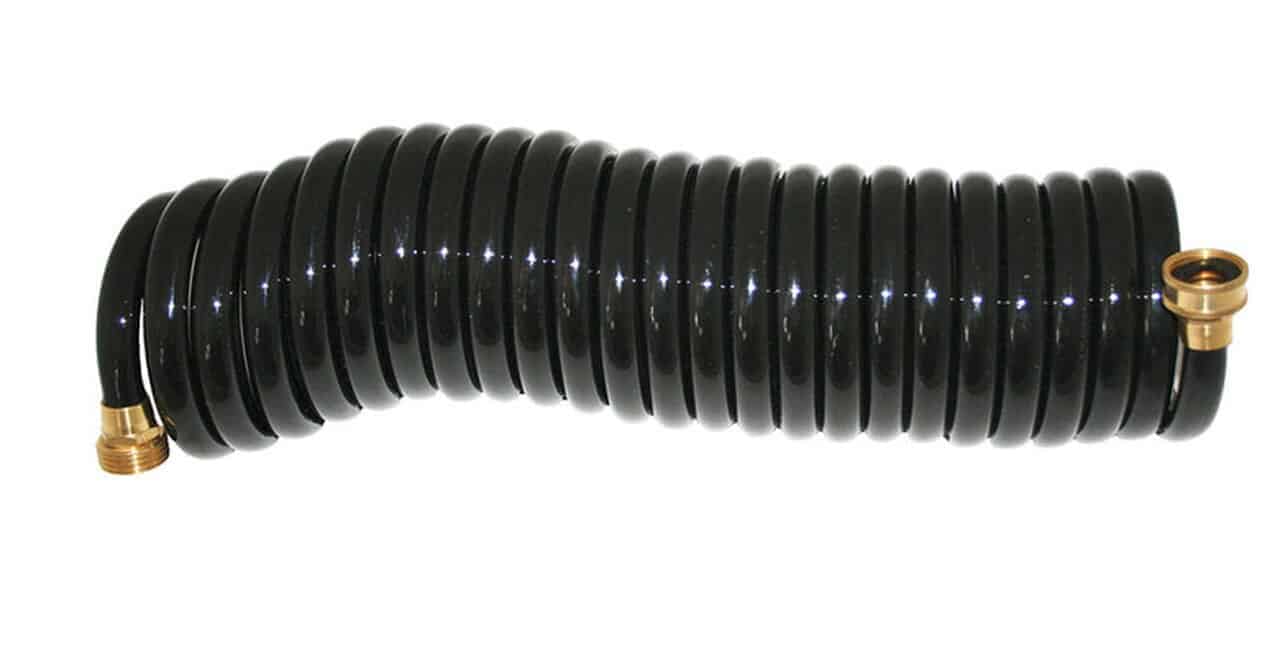

- 1 x 7.6m (25″) hose coil
Features:
- Jabsco’s largest washdown pump (6 GPM 22.7 LPM)
- Automatic operation at the squeeze of the trigger gun nozzle provided
- High pressure up to 70 PSI for blasting anchors & fishing areas clean
- Suitable for use with salt water and/or fresh water
- Self-priming to 2.1 metres (7 ft)
- Co-molded diaphragm technology for long life and durability
- HD model featuring heavy-duty, motor and cast aluminium lower housing which allow for long-life, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Full kit includes 25′ (7.6m) hose coil
- A plastic housing protects the motors from corrosion.
- Provides exceptional performance in an economical footprint.
| SKU | J20-254 |
|---|---|
| Jabsco Part No. | P601J-219N-4A |
| Replaces Old Versions | J20-154 (82906-0092) |
| Voltage | 12V |
| Open Flow | 6 GPM (22.7 LPM) |
| Shut-off Pressure | 70 PSI (4.8 bar) |
| Max Current Draw | 19A |
| Recommended Fuse Size | 25A |
| Motor Design | Brushed, permanent magnet TENV |
|---|---|
| Pumphead upper housing material | Glass fiber-reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temp Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-priming Capability | 7ft min (2.1m min) |
| Certifications | CE, ISO8846, RCM |
| Ingress protection | IPX6 |
| Warranty | 3 years |
