Description

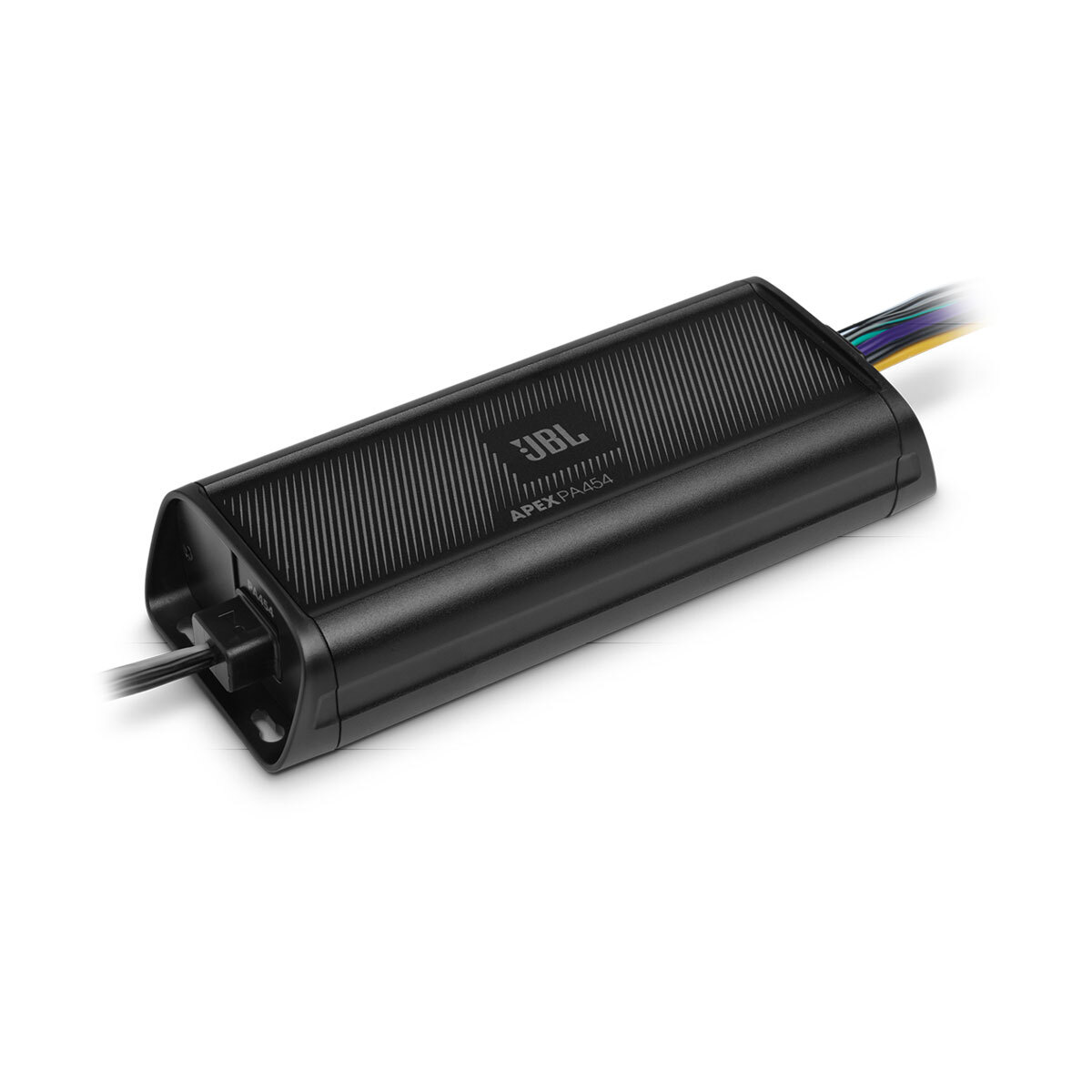

JBL® APEX Class D Marine Amplifiers
JBL APEX Powersports amplifier circuitry technology delivers an incredible performing multi environment amplifier family in a compact size making suitable for all installations.
Weather resistant to withstand the harsh marine environment.
All APEX Amplifiers use class D circuitry technology. This technology is especially suited to marine applications as they draw less current, generate less heat and deliver more power than traditional A and B class units.
Class D amplifiers can reach efficiencies of up to 90% which can significantly increase battery life.
| BLA Code | 117394 | 117396 | 117398 |
|---|---|---|---|
| Description | APEX PA454 | APEX PA1254 | APEX PA1502 |
| RMS Power | 45W x 4 @ 4-ohm | 75W x 4 @ 4-ohm / 125W x 4 @ 2-ohm / 250W x 2 @ 4-ohm | 100W x 2 @ 4-ohm / 150W x 2 @ 2-ohm / 300W x 1 @ 4-ohm |
| Selectable Crossover | Front/Rear: High-Pass @ Full/60/80/120Hz | Front: High-Pass @ Full/60/80/120Hz <br> Rear: All-Pass, High-Pass, or Low-Pass @ 60/80/120Hz | All-Pass, High-Pass, or Low-Pass @ 60/80/120Hz |
| Frequency Response | 20 Hz to 20kHz | 20 Hz to 20kHz | 20 Hz to 20kHz |
| Selectable Bass Boost | – | – | 0, 6, 12dB @ 45Hz (when low-pass selected) |
| Signal to Noise Ratio | 85dB | 85dB | 85dB |
| THD | <1% | <1% | <1% |
| Fuse Rating | 15A | 40A | 25A |
| Dimensions (mm) L x W x H | 170 x 85 x 45 | 170 x 85 x 45 | 170 x 85 x 45 |
