Description

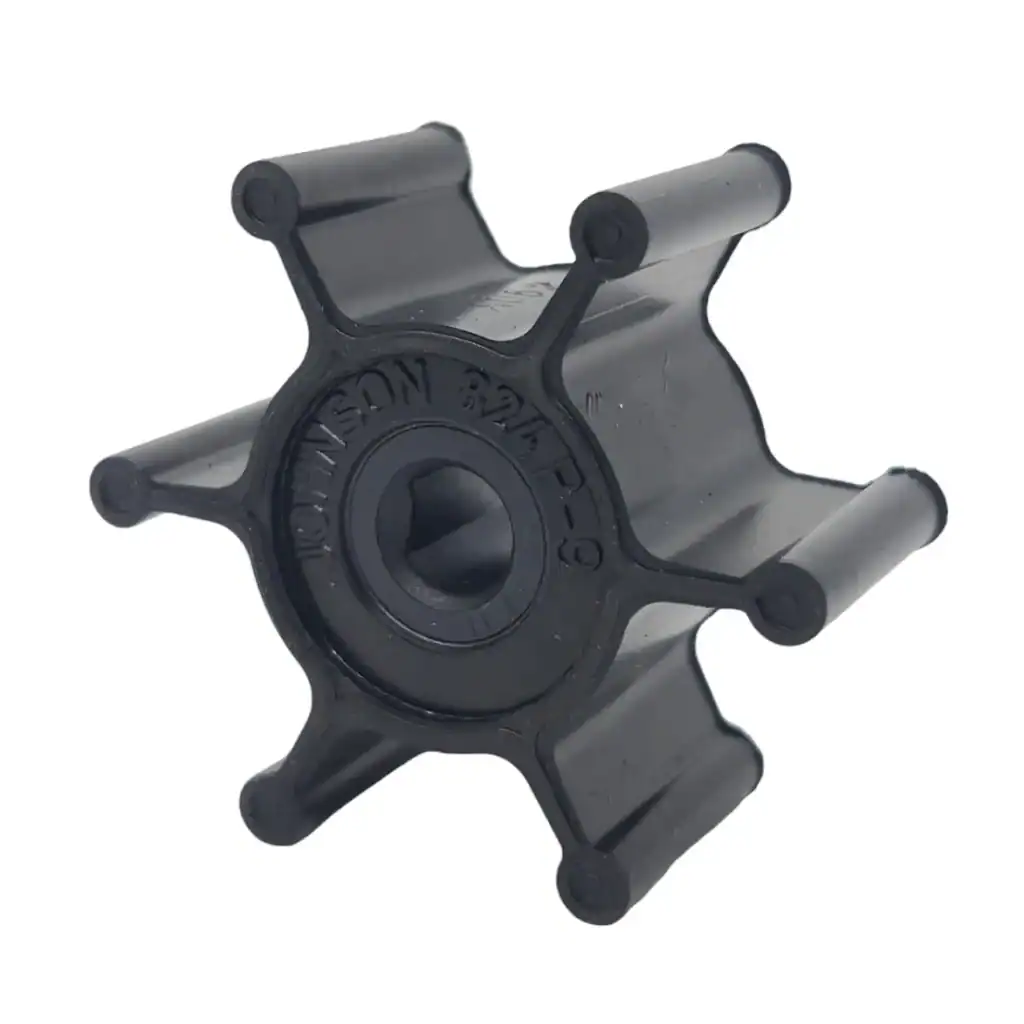

SPX Johnson Impeller 824P / F4B-11 Nitrile SPX 09-824P-9 Jabsco 6303-0003
Impeller: 09-824P-9
Material: Nitrile
Impeller Diameter: 51.0mm 2 Inch
Impeller depth/width: 22.0mm .87 inch
Shaft Diameter 8.0mm Flat .31 Flat
No of blades 6
Drive type Single flat drive
Refer to image 6 in the reference guide
Replaces Jabsco No: 6303-0003 Macerator impeller
Ancor J050011
CEF 500210
CEF 500238
CEF 500138
Please refer to the attached charts for additional information.
What Makes Johnson Pump the original and replacement impeller of choice?
With SPX Johnson pump you get:
Performance Stable Pressure delivery over time
• ensures the correct cooling flow
• significantly longer service life…in some applications up to 4x longer than the competition (at a given duty cycle).
Excellent Self-priming capability
• ensures sufficient cooling directly at startup
Correct impeller Dimensions
• our impellers are manufactured to strict tolerances for optimal functionality
Unique mc97 rubber compound
• ensures flexibility for self-priming capabilities and minimizes failure due to fatigue (broken blades).
provides stronger bonding to avoid hub slip.
Developmental know-how with its Johnson pump brand SPX is an original manufacturer of world class impellers for more than 40 years
• more than 125 years of accumulated engineering time.
• documented, standardized testing
• continuous quality testing, annually 150,000 test hours
• in excess of 150,000 hours testing of our mc97 rubber compound
Marine Compound 97 (rubber compound mc97)
One of our secrets for success is our rubber compound mc97; optimized to provide maximum life, especially for applications where the end user doesn’t run the engine on a regular basis:
• stable pressure delivery over time
• minimized failures due to fatigue
• minimized swelling
(Always use JP original impeller lube since many rubber compounds are sensitive to petroleum products.)
Most SPX Johnson Impellers come with gaskets and lubricant.
SPX Code: 09-824P-9 Material*: Nitrile Outer Dia.: 50.8mm / 2 inch Inner Dia.: 8mm Flat / 0.31inch Flat Width: 22mm / 0.87 inch Replaces Jabsco No : 6303-0003 Reference: 6
