Description

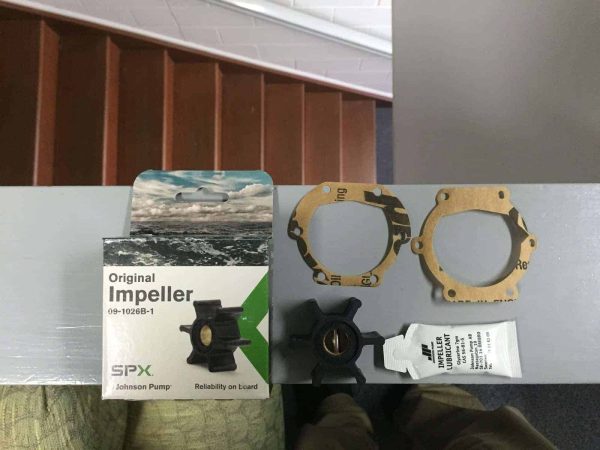

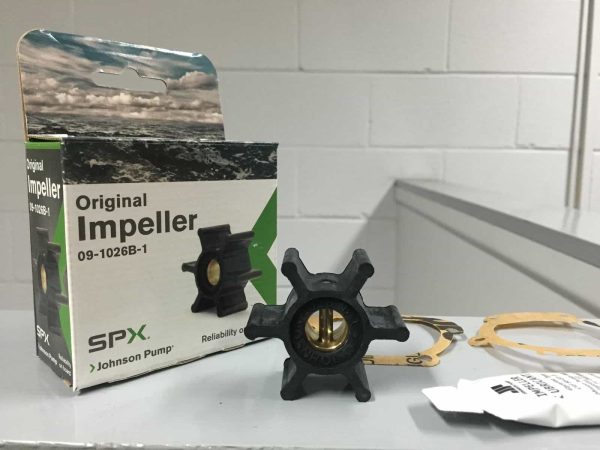

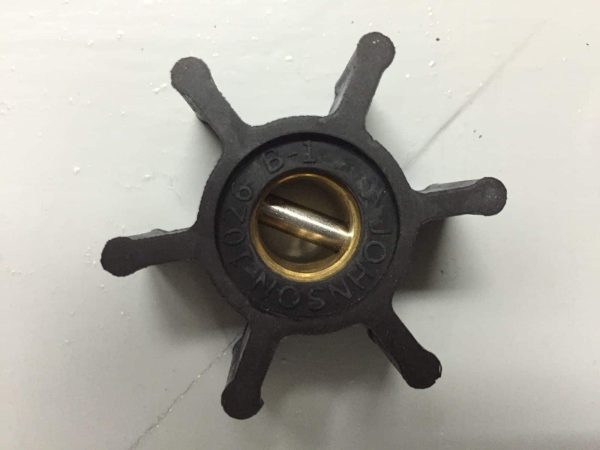

SPX Johnson Impeller F4B MC97 SPX 09-1026B-1 Jabsco 673-0001
Impeller: 09-1026b-1
Material: mc97
Outer Diameter: 50.8mm 2.00inch
Inner Dia: 12.7mm 0.50inch
Width: 22.0mm 0.87inch
Blades 6
Drive shaft: Slotted shaft pin drive

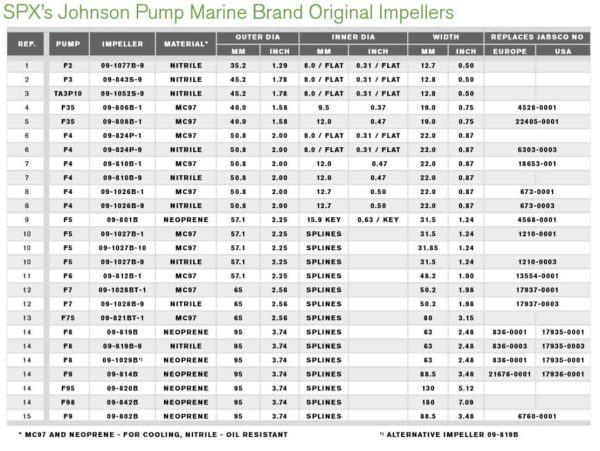

Refer to image 8 in the attached reference chart
Replaces Jabsco No: 673-0001
Please refer to attached charts for additional information.
What Makes Johnson Pump the original and replacement impeller of choice?
With SPX Johnson pump you get:
Performance Stable Pressure delivery over time
• ensures correct cooling flow
• significantly longer service life…in some applications up to 4x longer than the competition (at a given duty cycle).
Excellent Self-priming capability
• ensures sufficient cooling directly at start up
Correct impeller Dimensions
• our impellers are manufactured to strict tolerances for optimal functionality
Unique mc97 rubber compound
• ensures flexibility for self-priming capabilities and minimizes failure due to fatigue (broken blades).
provides stronger bonding to avoid hub slip.
Developmental know-how with its Johnson pump brand SPX is an original manufacturer of world class impellers for more than 40 years
• more than 125 years of accumulated engineering time.
• documented, standardized testing
• continuous quality testing, annually 150,000 test hours
• in excess of 150,000 hours testing of our mc97 rubber compound
Marine Compound 97 (rubber compound mc97)
One of our secrets for success is our rubber compound mc97; optimized to provide maximum life, especially for applications where the end user doesn’t run the engine on a regular basis:
• stable pressure delivery over time
• minimized failures due to fatigue
• minimized swelling
(always use JP original impeller lube since many rubber compounds are sensitive to petroleum products.)
SPX Code: 09-1026B-1 Material*: MC97 Outer Dia.: 50.8mm / 2.00 inch Inner Dia.: 12.7mm / 0.50 inch Width: 22mm / 0.87 inch Replaces Jabsco No : 673-0001(Europe & USA) Reference: 8
