Description

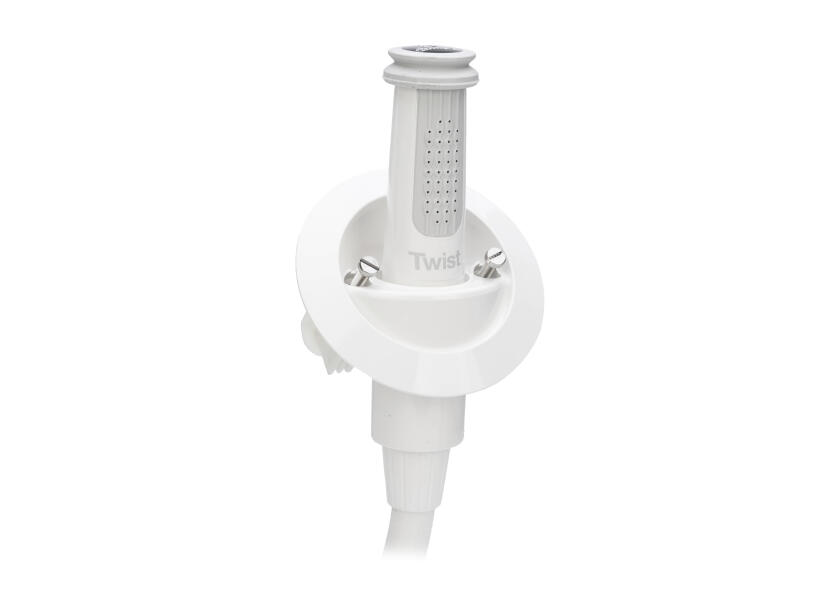

Twist Hand Showers – Cold only handset with angled housing DS0212B
A truly innovative and versatile deck shower combining real shower feel with performance and functionality. Fast, simple installation requiring only one circular hole and easy
plumbing connection. The design incorporates integral twist control allowing simple flow adjustment. For neat under deck stowage of hose use the twist stowage bag, 134170.
Features:
• Lightweight rubber Deck Protect™ end cap design prevents damage to gelcoat and deck
• Wipe clean nozzles for easy removal of lime scale
• Twist control adjusts temperature if connected to hot water supply
• High quality ceramic valves for maximum efficiency and accurate control
• Streamlined ergonomic design
• Manufactured from high quality U.V. resistant ASA materials
• Can be conveniently mounted on flat or curved surfaces
• Rubberised end cap makes handset easy to pull out for use and acts as a seal when stowed, no need for cover or lid
• 134160 is supplied with adapters to System 12 and 15 plumbing

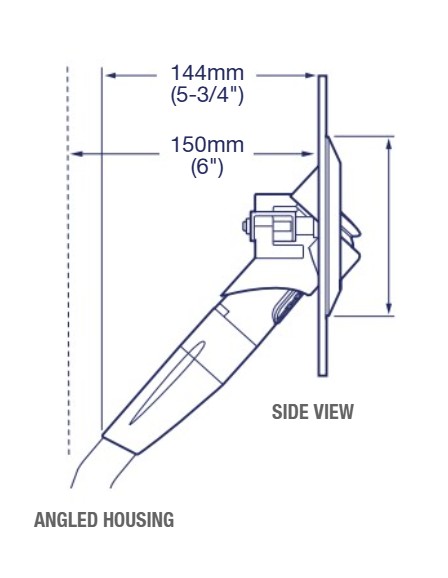

| Code | Type | Housing | Hose Length (m) | Outside Dia. (mm) | Cut Out Size (mm) | Max. Intrusion (mm) | Plumbing Connection |
|---|---|---|---|---|---|---|---|
| 134160 | Single | Angled | 2 | 120 | 88 | 330 | 3/8″ int |
| 134162 | Mixed | Straight | 2.5 | 53 | 48 | 330 | 1/2″ ext |
| 134164 | Mixed | Angled | 2.5 | 120 | 89 | 350 | 1/2″ ext |
| 134165 | Mixed | Angled | 4 | 120 | 89 | 350 | 1/2″ ext |
Outside Dia.: 119mm Cut Out Size: 88mm Max. Intrusion: 330mm Plumbing Connection BSP: 1/2" int
