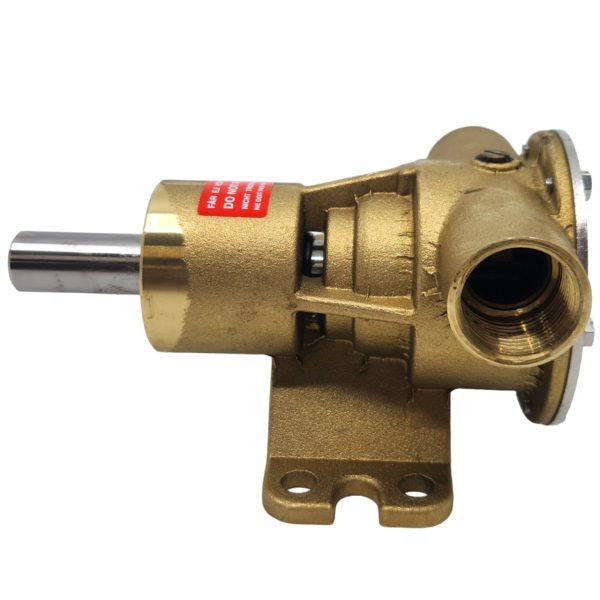

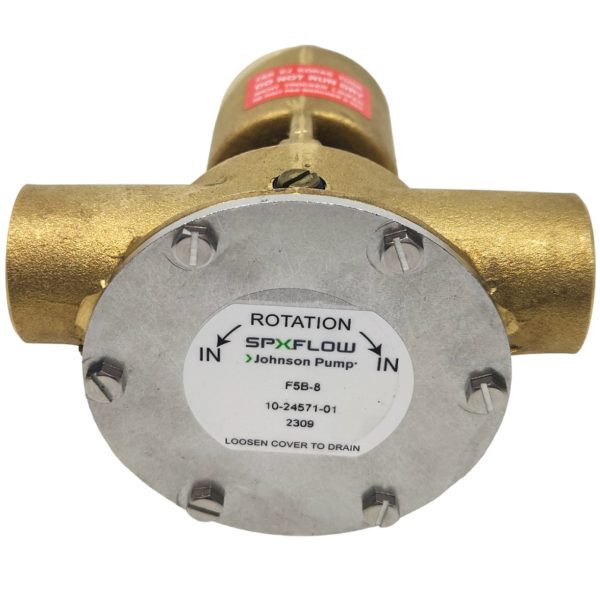

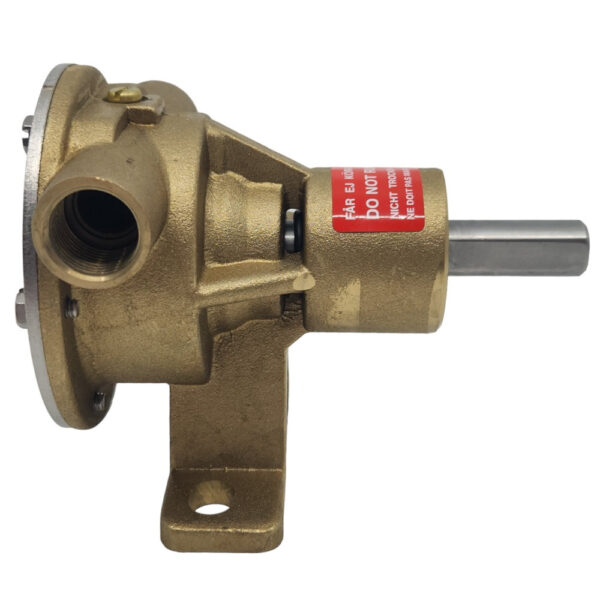

SPX Johnson Heavy Duty Impeller Pump 3/4″ F5B-8 10-24571-01

Description

SPX Johnson Heavy Duty Impeller Pump F5B-8 10-24571-01

Compact design, raw water resistant pumps at an attractive price – with the renowned SPX’s Johnson Pump marine brand quality. These pumps are designed for a number of applications on board. With excellent self-priming capability, these pumps are ideal as cooling water pumps for marine engines, bilge pumps, deckwash pumps, freshwater pumps, fuel transfer pumps and other applications. Also ideally suited on shore to empty septic tanks, to flush clean and to fill water tanks.

Features:

• Self-priming, a dry pump can lift water up to as much as 3 meters. Thus a flexible impeller pump being used for engine cooling does not need to be located below the water line or manually primed.
• Flexible impeller pumps can pass fairly large solids without clogging or damaging the pump. This reduces the need for filtering the incoming fluid.
• For general raw or fresh water applications, the standard long-lasting neoprene rubber impeller is used. All flexible impeller pumps is that they cannot be permitted to run dry for more than 30 seconds. Both the impeller and the seals depend upon the water for lubrication and will soon fail if run dry.
• Wear parts are easily replaceable
• Service kits are available for all standard models.

Specifications:

• Pump body: Bronze
• Shaft: Stainless steel. The shaft is mounted with permanently lubricated double ball bearings
• Seal: Mechanical seal
• Cam: Full or reduced
• Connection: BSP

Specifications:

• Pump Body: Bronze
• Impeller: 09-1027B
• Connection: 3/4″ BSP ports
• Length: 151mm
• Width: 106mm
• Height to shaft: 50mm
• Shaft diameter: 17mm
• Weight: 1.6kg

Impeller: 09-1027B-1 Connection: 3/4" BSP Length: 151mm Width: 106mm Height: 50mm Weight: 1.6kg Drive Shaft: 5/8"
