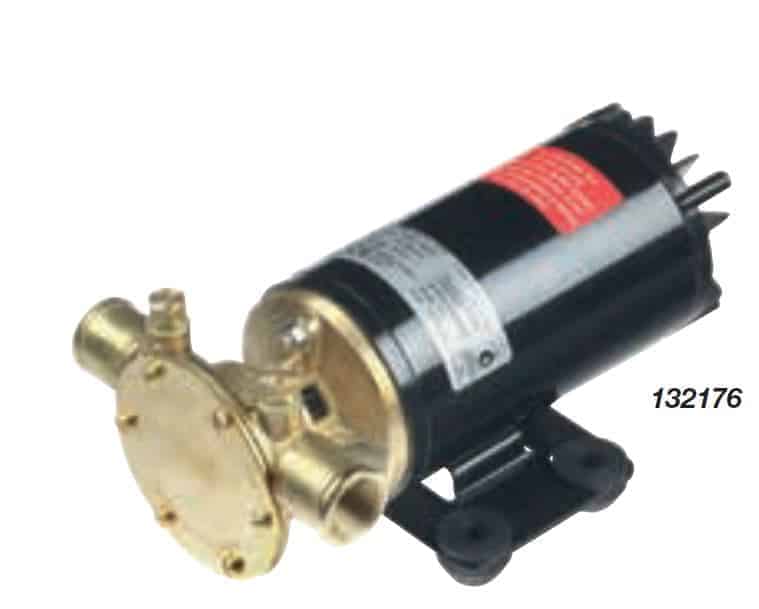

SPX Johnson Ultra Ballast Impeller Pump – 52 L/min F4B-11 Ultra Ballast 24 Volt 10-24690-02

Description

SPX Johnson Ultra Ballast Impeller Pump – 52 L/min F4B-11 Ultra Ballast 24 Volt 10-24690-02

Designed to quickly fill or, when reversed, drain a ballast tank. Capable of pumping fresh or sea water, the pump’s robust design can handle the rigors of continuous duty usage, is reversible, and has a built-in thermal overload for added protection. Polarity reversing switch kit (Part No. 09-47196) available as accessory.
Important! Only for use with water. If risk of dry-running over 30 sec. use Polyurethane impeller.

With their high level of flexibility, the DC driven pumps from SPXFLOW Johnson Pump are ideally suited for use in boats as bilge pumps, deck wash pumps, fresh water pumps and refuelling pumps for oil and diesel. Not to be used for pumping paraffin or other thin petroleum products. These pumps may be combined with a vacuum switch for automatic operation. Not to be used for pumping paraffin or other thin petroleum products.

Features:

• Typical applications: Bilge pump, fresh water pump, deck washing, fuel oil transfer, fire pump, oil change pump, etc
• Full range of capacities from 15 – 55 l/min
• Oil-resistant impeller
• Self-priming
• Easy maintenance
• Handle debris (bilge pumping)
• Self-priming
• All motors are heavy duty to provide long service life even under heavy use
• Available in 12 or 24 volts

Specifications:

• Pump Body: Bronze
• Impeller: 09-824P-1
• Connection: 1/2″ BSP /1″ Hose
• Capacity: 52L/Min
• Length: 202mm
• Width: 120mm
• Height: 90mm
• Weight: 3kg
