Description

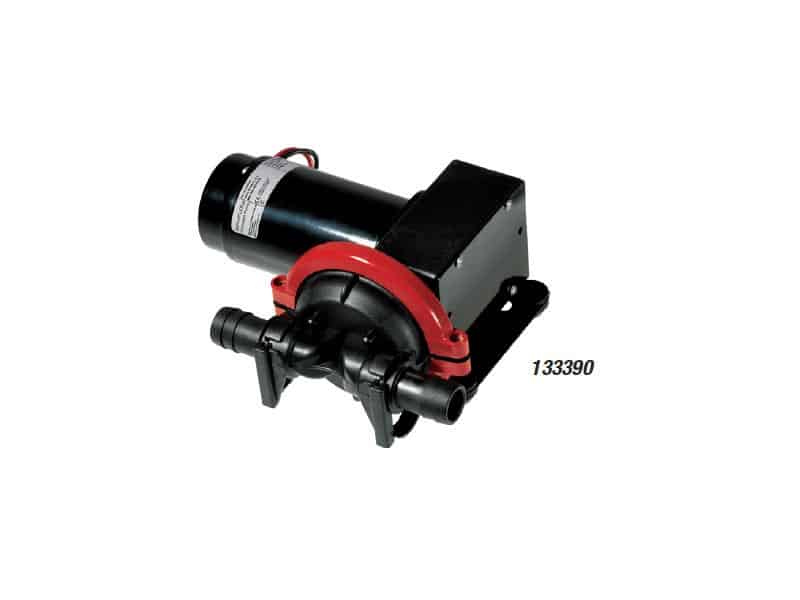

SPX Johnson Pump Viking Power 16 Waste Water 24 Volt 10-13350-04
Description
The Viking Power 16 is self-priming up to a height of 3 metres. With its low pulse and muffled rubber bracket, this pump offers quiet operation. Specifically designed to pump waste water, the Viking Power 16 has been built to last, and engineered for easy maintenance. When it comes time to replace the premium grade reinforced nitrile rubber diaphragm, you can put in a spare without even removing the pump from the system. Delivered with 1″ hose and ¾” hose ½” BSP KlickTite™ XL connectors. 90° KlickTite™ XL connectors available as extra accessory.
Specifications
• Motor: 2.3 amp (12 Volt), 1.2 amp (24 Volt) at 0.1 bar
• Body: Nylon, glass-fibre reinforced
• Valves: Nitrile rubber
• Diaphragm: Reinforced nitrile rubber
Specifications
Viking Power 16, 24 Volt
Capacity Open Flow: 16 l/min – 4.2 GPM
Capacty at 0.1 bar: 15 l/min – 4.0 GPM
Max Lift: 3m
Max Head: 3m
Connection: KlickTite™ XL connectors for 1″ hose or ¾” hose and ½” BSP threads; straight and 90° (optional)
Length: 186mm
Width: 238mm / 181mm
Height: 118mm / 204mm
Weight: 2.6kg
Condition
New
Length 186 mm Width 238/181mm Height 118/204mm Weight 2.6 KG
