Description

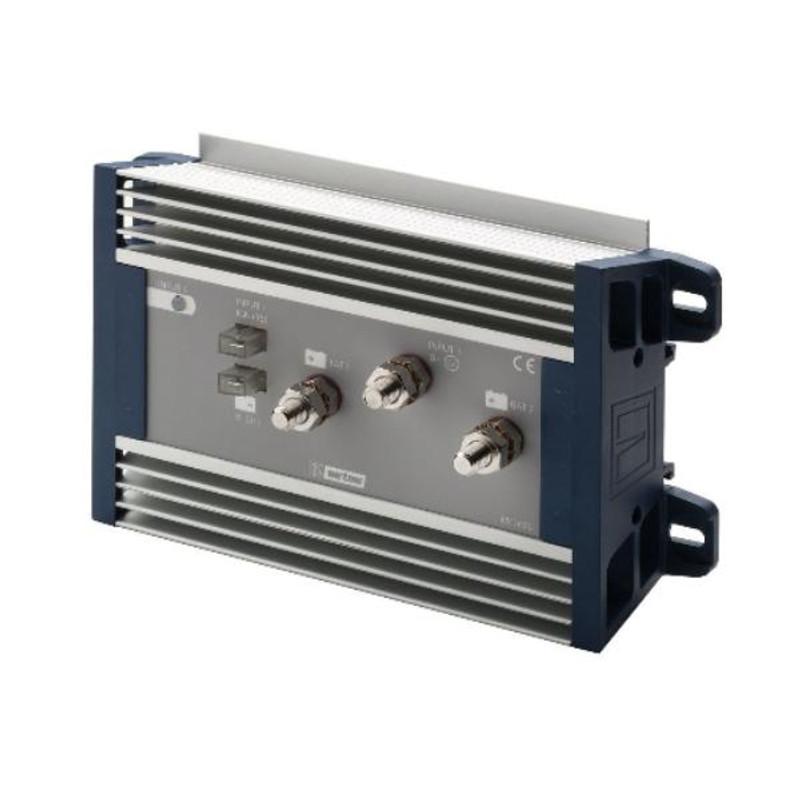

Vetus Battery splitter, 150A, 2 Main Output
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Vetus Battery Splitter, 150A, 2 Main Output
VETUS battery splitters provide simultaneous charging of two battery banks from any charging source, with negligible voltage drop. A battery splitter may be considered as an automatic battery selector switch. It ensures automatic distribution of the charging current from the alternator and/or the battery charger to all banks of batteries, while keeping them insulated as supply sources. This is possible because the electronics employed allow current to flow from the charging source to each of the battery banks separately, and not the other way round. In other words, it is impossible for one battery bank to discharge into another. Even if the battery for domestic services is (almost) exhausted, the starter battery will remain unaffected. Once the engine has been started, the alternator will automatically recharge all banks of batteries. As opposed to diode splitters, this alternative has negligible voltage drop due to the use of MOSFET transistors instead of diodes (0.1V at 20A, instead of 0.7V). Therefore, the actual charging voltage is almost identical to the voltage provided by the alternator, ensuring optimum battery charging. There is no need to compensate the output of the alternator, even if that is possible. The new battery splitter features an auxiliary connection which provides feedback to voltage-sensed alternators. VETUS battery splitters are suitable for 12 and for 24V installations for two battery banks, and for one or two alternators. The maximum charging current is 150A.
Features
– Allows up to two batteries to be charged, each in a separate circuit
– Suitable for a charging current of 150A
– Minimal voltage drop
– Maximizes battery service life
– Suitable for both 12V and 24V systems
– Weight: 1.0kg
Part Number Input voltage (V) Main Rated Current Main Output (ESB) Number of inputs Dimensions (H x W x L) Weight (kg)
VTS-BS1502C 8 – 30 150A 2 1 13.6cm x 26.8cm x 10.8cm 1kg
Battery splitter 150A 2x out, comp. 120x139x269
