Description

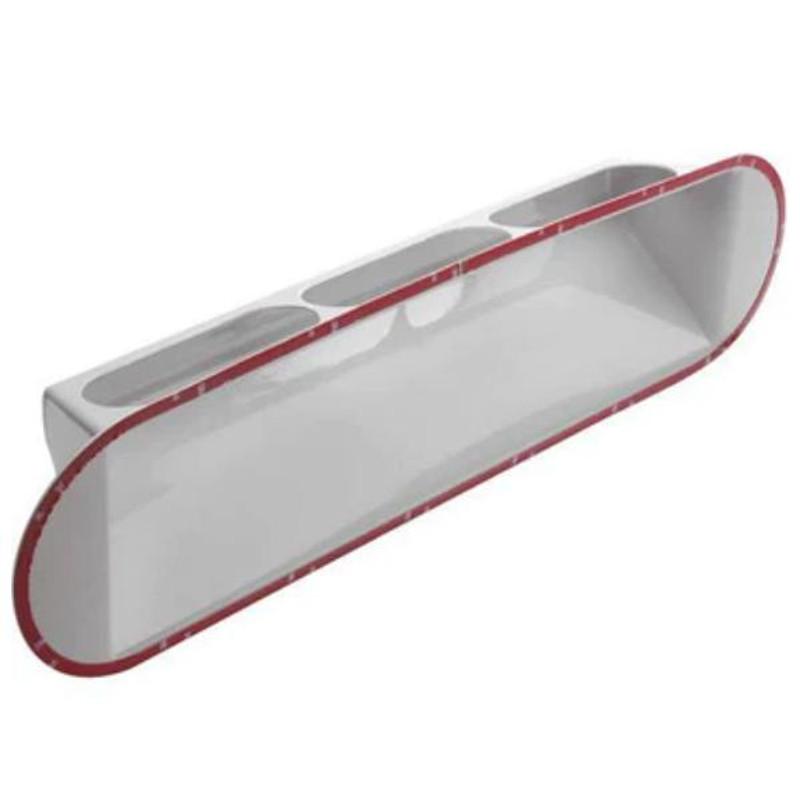

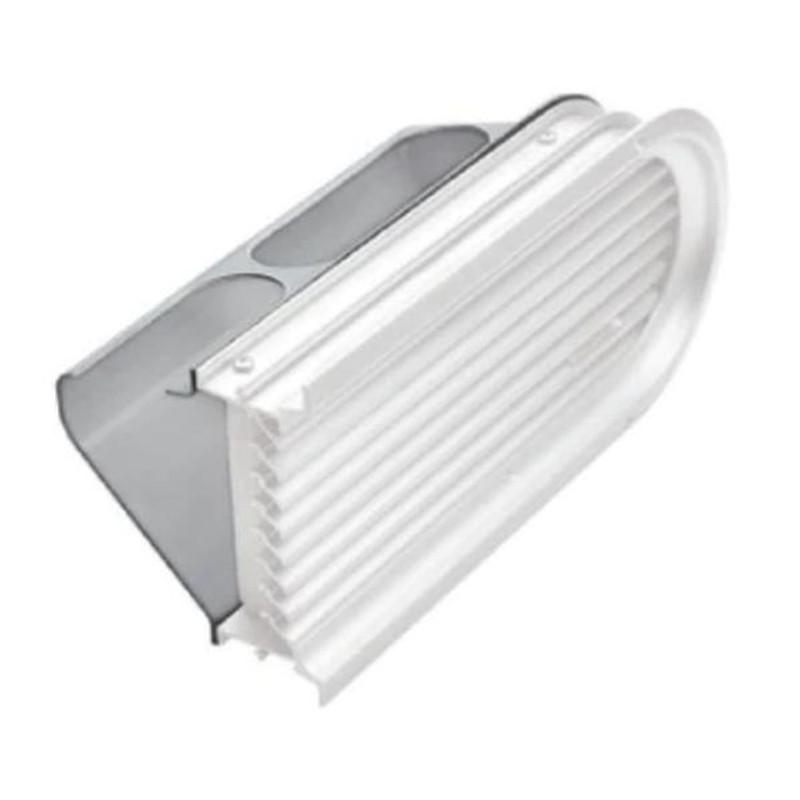

VETUS Dorade Box for Louvered Air Suction Vent – Type DBOX
In addition to combustion air, the engine also requires sufficient ventilation air to dissipate the residual heat.
The required volume of ventilation air is about the same as the combustion air needed which is approximately 6.1 m3 per kW (4.5 m3 per hp) per hour based on a maximum air velocity of 3 m/sec. The design of the VETUS air suction vents is based on these principles.
The model numbers relate to the engine horsepower for which they are suitable.
All standard air suction vents can be supplied with a synthetic dorade box as an option (except type ASVREC).
See complete specifications in the table below:
| PRODUCT NUMBER | TYPE | SUITS |
| VTS-DBOX020 | 20 | Dorade box for ASV020A |
| VTS-DBOX025 | 25 | Dorade box for ASV025A |
| VTS-DBOX030 | 30 | Dorade box for ASV030A |
| VTS-DBOX040 | 40 | Dorade box for ASV040A |
| VTS-DBOX050 | 50 | Dorade box for ASV050A |
| VTS-DBOX060 | 60 | Dorade box for ASV060A |
| VTS-DBOX070 | 70 | Dorade box for ASV070A and SSVL070 |
| VTS-DBOX080 | 80 | Dorade box for ASV080A and SSVL080 |
| VTS-DBOX090 | 90 | Dorade box for ASV090A and SSVL090 |
| VTS-DBOX100 | 100 | Dorade box for ASV100A and SSVL100 |
| VTS-DBOX125 | 125 | Dorade box for ASV125A and SSVL125 |
| VTS-DBOX150 | 150 | Dorade box for ASV150A and SSVL150 |
OVERALL DIMENSIONS (LWH): 70mm x 112mm x 291mm
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
70mm x 112mm x 291mm
