Vetus Drive for Propeller Shaft – Type 2 – CV Joint 15
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.

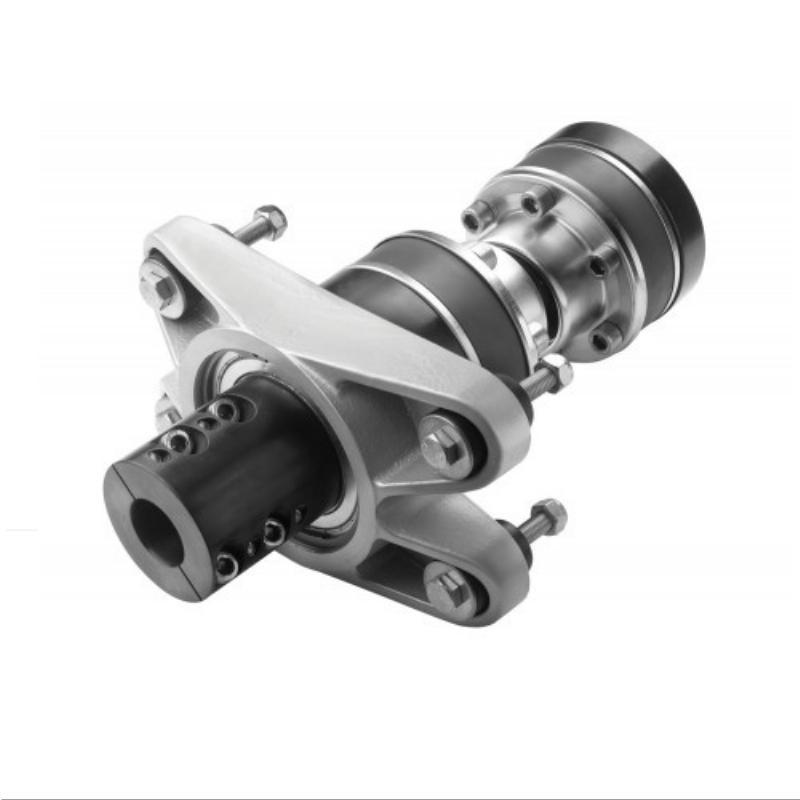

Vetus Drive for Propeller Shaft – Type 2, Constant Velocity Joint 15.
The VETUS DRIVE (Type VDR) is a combination of a self-aligning thrust bearing and a double acting constant velocity joint. The propeller thrust is absorbed by the inbuilt thrust bearing allowing the engine to be set up on softer mountings, resulting in lower vibration and transmitted noise.
The VDR is made of stainless, black passivated steel and high performance rubber. This heavy duty VDR has been tested under the toughest conditions and is suitable for maximum thrust up to 24 000 N.
Specifications:
– VDR6 is available for shaft diameters of 50, 60 or 70 mm
– VDR2 and 4 are available for shaft diameters of 25, 30, 35, 40, 45 or 50 mm
– Interchangeable with other well-known models
– Durable design with long lifetime

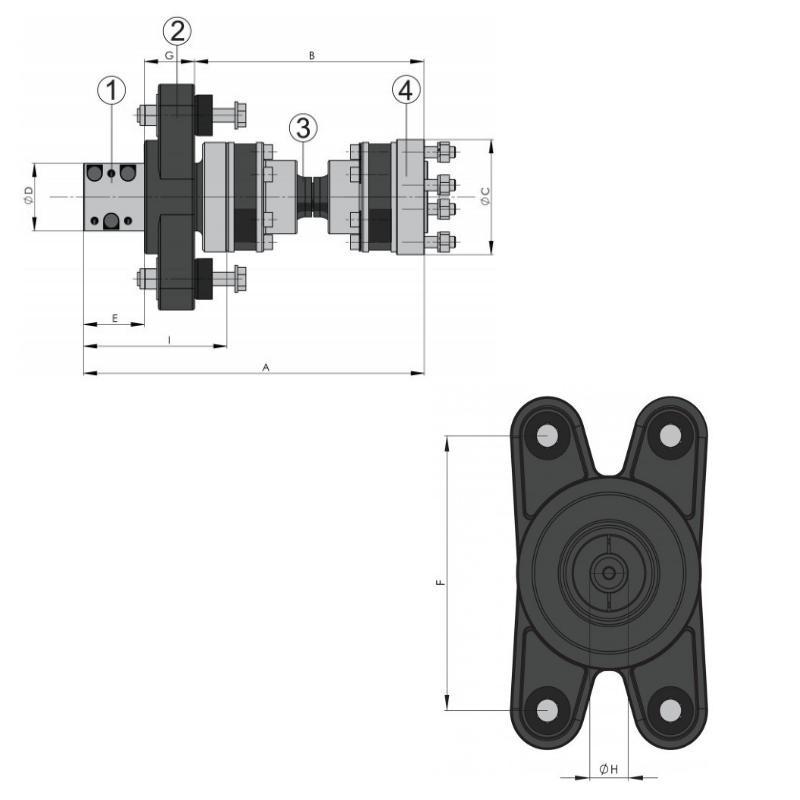

Part Number Shaft Diameter / Flange Overall Length (A) B Flange Height (C) Diameter (D) Clamp Width (E) F Thrust Width (G) (H) I
VTS-VDR215254 25mm / 4″ 376mm 268mm 101.6mm 60mm 63mm 145mm 45mm 25mm 175mm
VTS-VDR215304 30mm / 4″ 376mm 268mm 101.6mm 60mm 63mm 145mm 45mm 30mm 175mm
VTS-VDR215255 25mm / 5″ 376mm 268mm 127mm 60mm 63mm 145mm 45mm 25mm 175mm
VTS-VDR215305 30mm / 5″ 376mm 268mm 127mm 60mm 63mm 145mm 45mm 30mm 175mm
VTS-VDR215354 35mm / 4″ 401mm 268mm 101.6mm 69mm 88mm 145mm 45mm 35mm 200mm
VTS-VDR215355 35mm / 5″ 401mm 268mm 101.6mm 69mm 88mm 145mm 45mm 35mm 200mm
VETUS drive type 2 Rod 25, CVJ 15, 4'' 150x214x358
