Vetus Drive for Propeller Shaft – Type 2 – CV Joint 21
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Vetus Drive for Propeller Shaft – Type 2, Constant Velocity Joint 21.

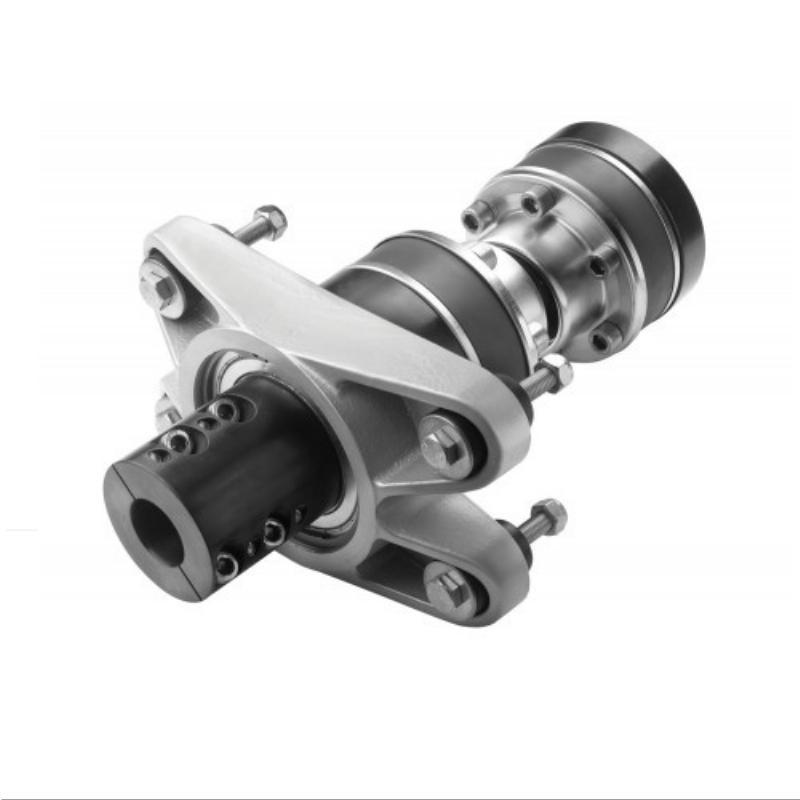

The VETUS DRIVE (Type VDR) is a combination of a self-aligning thrust bearing and a double acting constant velocity joint. The propeller thrust is absorbed by the inbuilt thrust bearing allowing the engine to be set up on softer mountings, resulting in lower vibration and transmitted noise.
The VDR is made of stainless, black passivated steel and high performance rubber. This heavy duty VDR has been tested under the toughest conditions and is suitable for maximum thrust up to 24 000 N.
Specifications:
– VDR6 is available for shaft diameters of 50, 60 or 70 mm
– VDR2 and 4 are available for shaft diameters of 25, 30, 35, 40, 45 or 50 mm
– Interchangeable with other well-known models
– Durable design with long lifetime

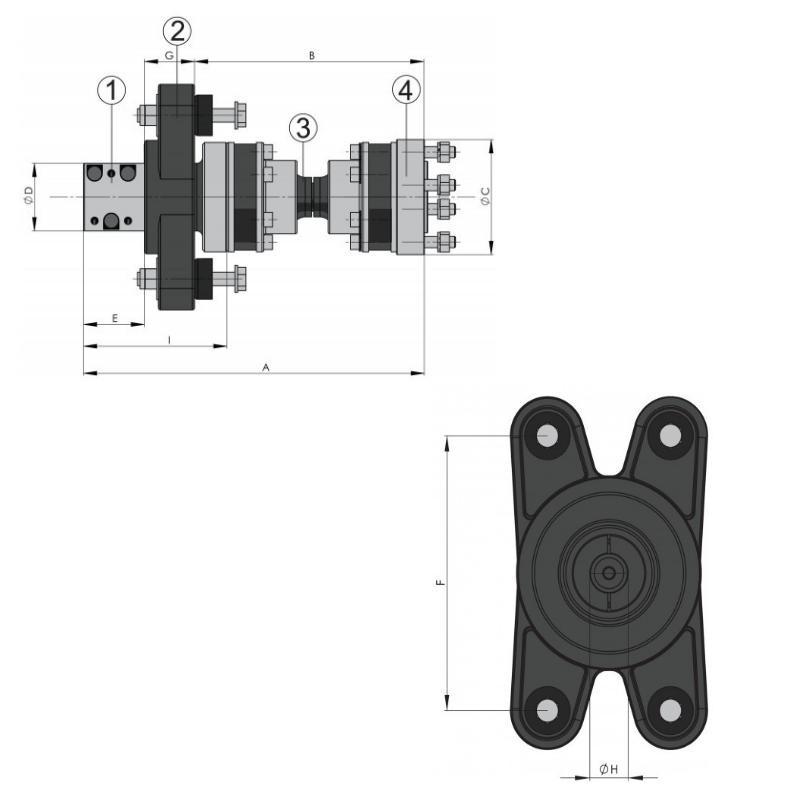

Part Number Shaft Diameter / Flange Overall Length (A) B Flange Height (C) Diameter (D) Clamp Width (E) F Thrust Width (G) (H) I
VTS-VDR221304 30mm / 4″ 429mm 321mm 101.6mm 60mm 63mm 145mm 45mm 30mm 183mm
VTS-VDR221305 30mm / 5″ 429mm 321mm 127mm 60mm 63mm 145mm 45mm 30mm 183mm
VTS-VDR221354 35mm / 4″ 454mm 321mm 101.6mm 69mm 88mm 145mm 45mm 35mm 208mm
VTS-VDR221355 35mm / 5″ 454mm 321mm 127mm 69mm 88mm 145mm 45mm 35mm 208mm
VTS-VDR221404 40mm / 4″ 454mm 321mm 101.6mm 69mm 88mm 145mm 45mm 40mm 208mm
VTS-VDR221405 40mm / 5″ 454mm 321mm 127mm 69mm 88mm 145mm 45mm 40mm 208mm
VETUS drive type 2 Rod 30, CVJ 21, 4'' 160x224x361
