Vetus Drive for Propeller Shaft – Type 4 – CV Joint 21
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.

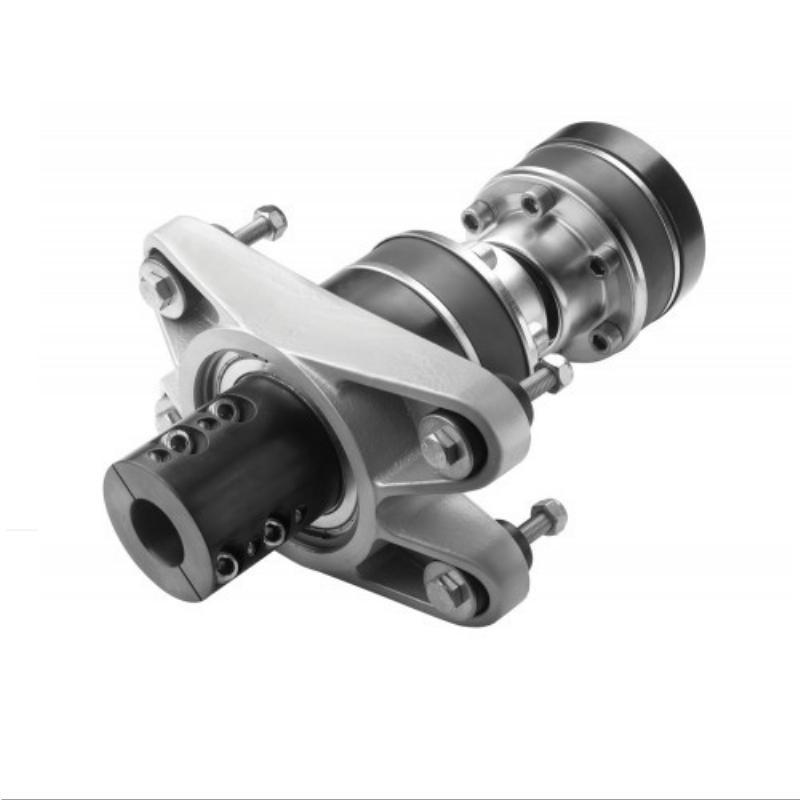

Vetus Drive for Propeller Shaft – Type 4, Constant Velocity Joint 21.
The VETUS DRIVE (Type VDR) is a combination of a self-aligning thrust bearing and a double acting constant velocity joint. The propeller thrust is absorbed by the inbuilt thrust bearing allowing the engine to be set up on softer mountings, resulting in lower vibration and transmitted noise.
The VDR is made of stainless, black passivated steel and high performance rubber. This heavy duty VDR has been tested under the toughest conditions and is suitable for maximum thrust up to 24 000 N.
Specifications:
– VDR6 is available for shaft diameters of 50, 60 or 70 mm
– VDR2 and 4 are available for shaft diameters of 25, 30, 35, 40, 45 or 50 mm
– Interchangeable with other well-known models
– Durable design with long lifetime
Part Number Shaft Diameter / Flange Overall Length (A) B Flange Height (C) Diameter (D) Clamp Width (E) F Thrust Width (G) (H) I
VTS-VDR421405 40mm / 4″ 437mm 294mm 101.6mm 85mm 90mm 214mm 53mm 40mm 188mm
VTS-VDR421454 40mm / 5″ 437mm 294mm 127mm 85mm 90mm 214mm 53mm 40mm 188mm
VTS-VDR421455 45mm / 4″ 437mm 294mm 101.6mm 85mm 90mm 214mm 53mm 45mm 188mm
VTS-VDR421504 45mm / 5″ 437mm 294mm 127mm 85mm 90mm 214mm 53mm 50mm 188mm
VTS-VDR421505 50mm / 4″ 448mm 294mm 127mm 89mm 102mm 214mm 53mm 50mm 199mm
VETUS drive type 4 Rod 40, CVJ 21, 5'' 779x318x230
