Vetus Drive for Propeller Shaft – Type 6 – CV Joint 30
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Vetus Drive for Propeller Shaft – Type 6, Constant‐Velocity Joint 30.

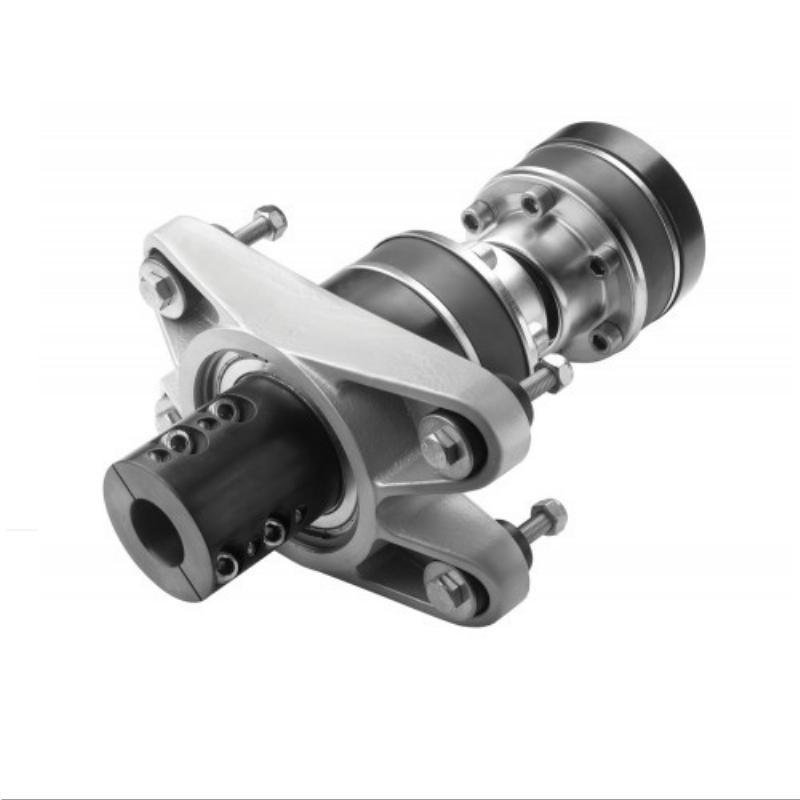

The VETUS DRIVE (Type VDR) is a combination of a self-aligning thrust bearing and a double acting constant velocity joint. The propeller thrust is absorbed by the inbuilt thrust bearing allowing the engine to be set up on softer mountings, resulting in lower vibration and transmitted noise.
The VDR is made of stainless, black passivated steel and high performance rubber. This heavy duty VDR has been tested under the toughest conditions and is suitable for maximum thrust up to 24 000 N.
Specifications:
– VDR6 is available for shaft diameters of 50, 60 or 70 mm
– VDR2 and 4 are available for shaft diameters of 25, 30, 35, 40, 45 or 50 mm
– Interchangeable with other well-known models
– Durable design with long lifetime

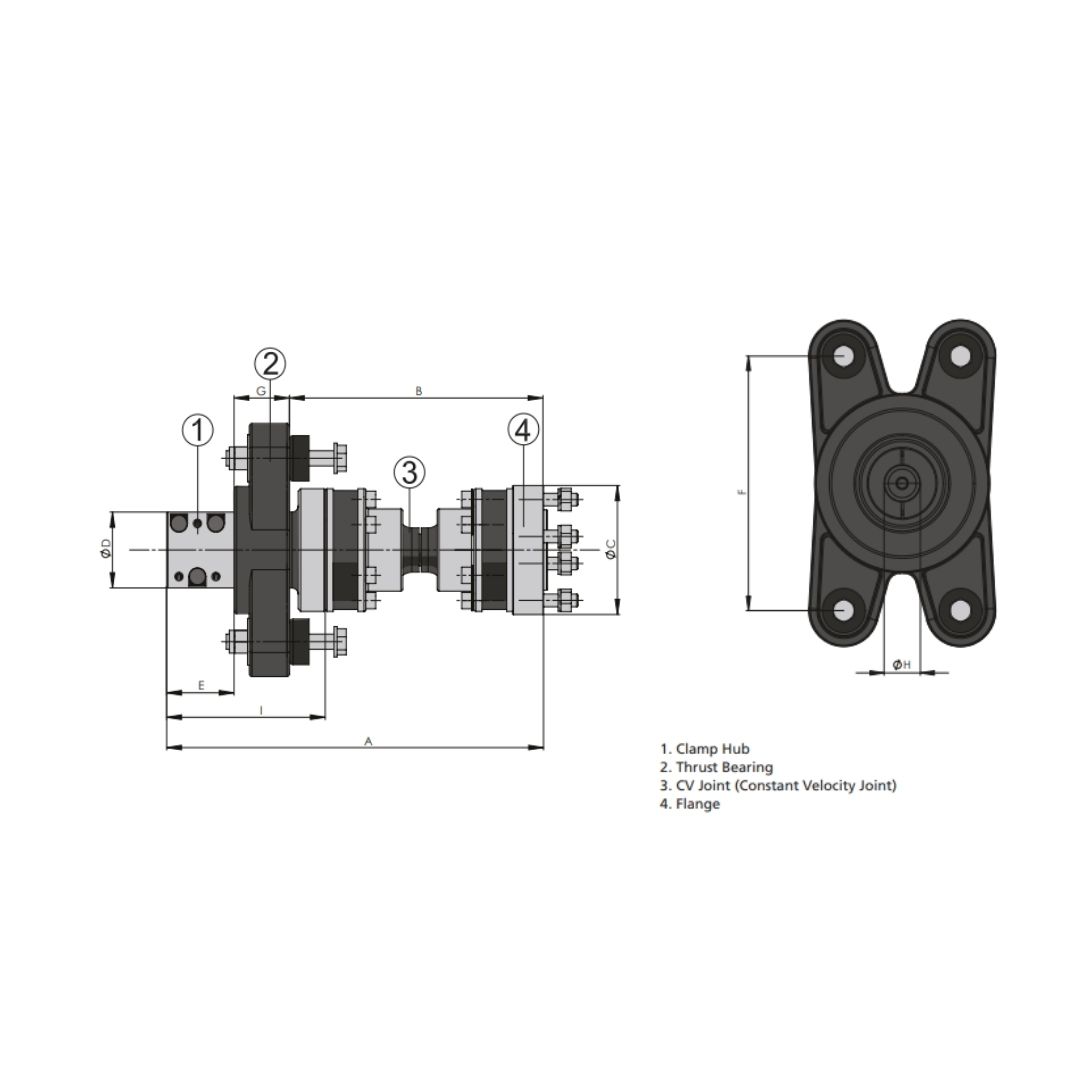

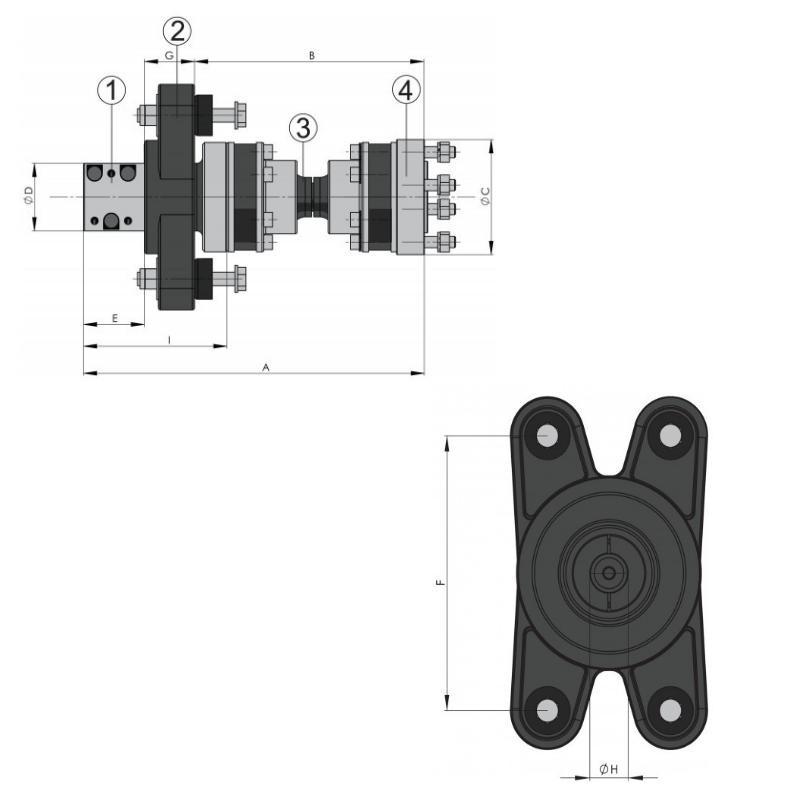

Part Number Shaft Diameter / Flange Overall Length (A) B Flange Height (C) Diameter (D) Clamp Width (E) F Thrust Width (G) H I
VTS-VDR630505 50mm / 5″ 522mm 333mm 127mm 87.5mm 87.5mm 250mm 87mm 50mm 250mm
VTS-VDR630506 50mm / 6″ 522mm 333mm 152.4mm 87.5mm 87.5mm 250mm 87mm 50mm 250mm
VTS-VDR630605 60mm / 5″ 522mm 333mm 127mm 87.5mm 87.5mm 250mm 87mm 60mm 250mm
VTS-VDR630606 60mm / 6″ 522mm 333mm 152.4mm 87.5mm 87.5mm 250mm 87mm 60mm 250mm
VTS-VDR630705 70mm / 5″ 522mm 333mm 127mm 87.5mm 87.5mm 250mm 87mm 70mm 250mm
VTS-VDR630706 70mm / 6″ 522mm 333mm 152.4mm 87.5mm 87.5mm 250mm 87mm 70mm 250mm
VETUS drive type 6 Rod 50, CVJ 30, 5'' NB
