VETUS Flexible Couplings – Type Bullflex 1 / BULFL011

Description

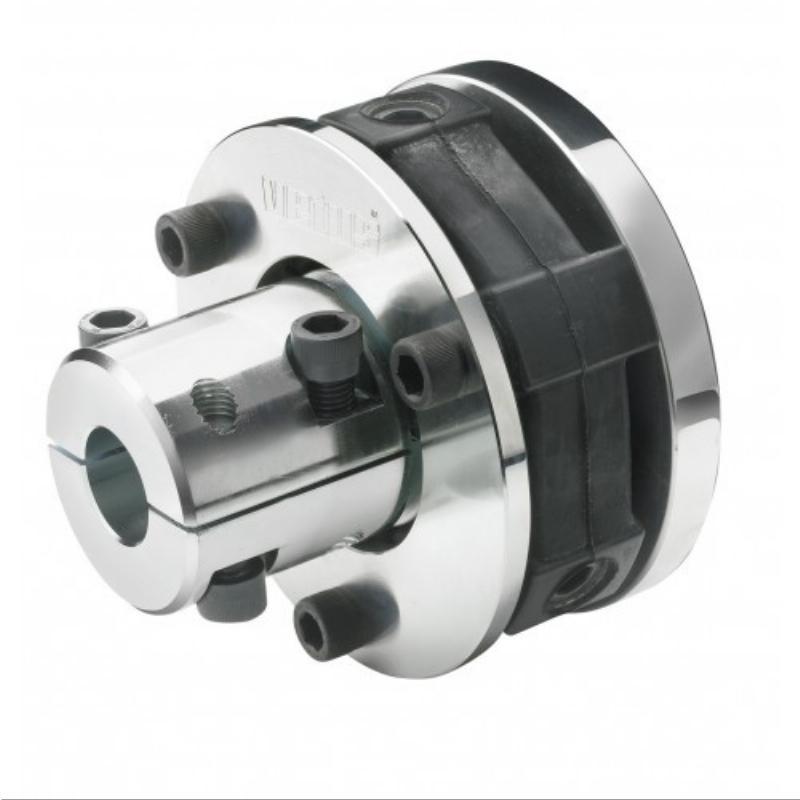

VETUS Flexible Couplings – Type Bullflex 1 / BULFL011

The Bullflex is the answer to the increasing demand of greater boating comfort. It is especially designed to ensure optimum damping of vibrations.

Torsional vibrations are smoothed out extremely efficiently by its very flexible rubber element, ensuring low-noise and vibration-free transmission without backlash between the engine and propeller shaft.

Another strong characteristic is the excellent alignment of the propeller shaft.

FEATURES

• Very high flexibility.
• Secured against shearing off (axially and radially) ensuring safe transmission under all circumstances.
• Misalignment of up to 2º permissible.
• Excellent centring of the shaft, allowing high shaft revolutions.
• Shaft remains centred even in reverse gear.
• Possibility to remove the centring ring, in case two or more bearings are applied.
• Built-in thrust damper reducing axial vibrations.
• Non-tapered clamping hub for perfect centring and easy dismantling of the shaft assembly.

TYPE BULLFLEX SPECIFICATIONS

• Models 1, 2 and 4 have a 4” gearbox connection.
• Models 8, 12 and 16 feature a 4” and 5” gearbox connection.
• Model 32 is provided with 6 threaded M16 holes on a pitch circle diameter of Ø 120,65 mm / 4,75” enabling mounting of the couplings to most models of gearboxes (Hurth, Velvet, TD, ZF and P.R.M.)
• VETUS can also supply the required fastenings for installation of the Bullflex onto the gearbox. This coupling is not suitable for V-Drives.

SPECIFICATIONS

• LENGTH (L) 85mm
• DIAMETER (d): 100mm
• SHAFT DIAMETER (D): 1″ / 25mm
• MAX R.P.M. At Zero Misalignment: 7000
• MAX R.P.M. At 2º Misalignment: 500

See complete specifications of all BULLFLEX in the table below.

OVERALL PRODUCT SIZE (L/W/H): 173mm x 109mm x 110mm

NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.

Type BULLFLEX 1 for shaft D 1" 110x109x173

PRODUCT TYPE	DESCRIPTION	SHAFT SIZE IMPERIAL DIAMETER	MAXIMUM RPM at ZERO MISALIGNMENT	MAXIMUM RPM at 2º MISALIGNMENT	DIAMETER	LENGTH
BULFL011	Type Bullflex 1	1″	7000	3500	100mm	85mm
BULFL0120	Type Bullflex 1	20mm	7000	3500	100mm	85mm
BULFL0125	Type Bullflex 1	25mm	7000	3500	100mm	85mm
BULFL021	Type Bullflex 2	1″	6500	3250	120mm	120mm
BULFL0220	Type Bullflex 2	20mm	6500	3250	120mm	120mm
BULFL0225	Type Bullflex 2	25mm	6500	3250	120mm	120mm
BULFL041	Type Bullflex 4	1″	6000	3000	150mm	152mm
BULFL0425	Type Bullflex 4	25mm	6000	3000	150mm	152mm
BULFL0430	Type Bullflex 4	30mm	6000	3000	150mm	152mm
BULFL0812	Type Bullflex 8	1 1/2″	5000	2500	170mm	166mm
BULFL0814	Type Bullflex 8	1 1/4″	5000	2500	170mm	166mm
BULFL0830	Type Bullflex 8	30mm	5000	2500	170mm	166mm
BULFL0835	Type Bullflex 8	35mm	5000	2500	170mm	166mm
BULFL0840	Type Bullflex 8	40mm	5000	2500	170mm	166mm
BULFL1212	Type Bullflex 12	1 1/2″	4000	2000	200mm	177mm
BULFL1213	Type Bullflex 12	1 3/4″	4000	2000	200mm	177mm
BULFL1235	Type Bullflex 12	35mm	4000	2000	200mm	177mm
BULFL1240	Type Bullflex 12	40mm	4000	2000	200mm	177mm
BULFL1245	Type Bullflex 12	45mm	4000	2000	200mm	177mm
BULFL1612	Type Bullflex 16	1 1/2″	4000	2000	205mm	197mm
BULFL1613	Type Bullflex 16	1 3/4″	4000	2000	205mm	197mm
BULFL162	Type Bullflex 16	2″	4000	2000	205mm	197mm
BULFL1640	Type Bullflex 16	40mm	4000	2000	205mm	197mm
BULFL1645	Type Bullflex 16	45mm	4000	2000	205mm	197mm
BULFL1650	Type Bullflex 16	50mm	4000	2000	205mm	197mm
BULFL3213	Type Bullflex 32	1 3/4″	3600	1800	260mm	197mm
BULFL322	Type Bullflex 32	2″	3600	1800	260mm	197mm
BULFL3245	Type Bullflex 32	45mm	3600	1800	260mm	197mm
BULFL3250	Type Bullflex 32	50mm	3600	1800	260mm	197mm
BULFL3260	Type Bullflex 32	60mm	3600	1800	260mm	197mm
BULFL3270	Type Bullflex 32	70mm	3600	1800	260mm	197mm
