Description
VETUS Rubber Bearing Brass Shell – Type RL / RL2540
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.

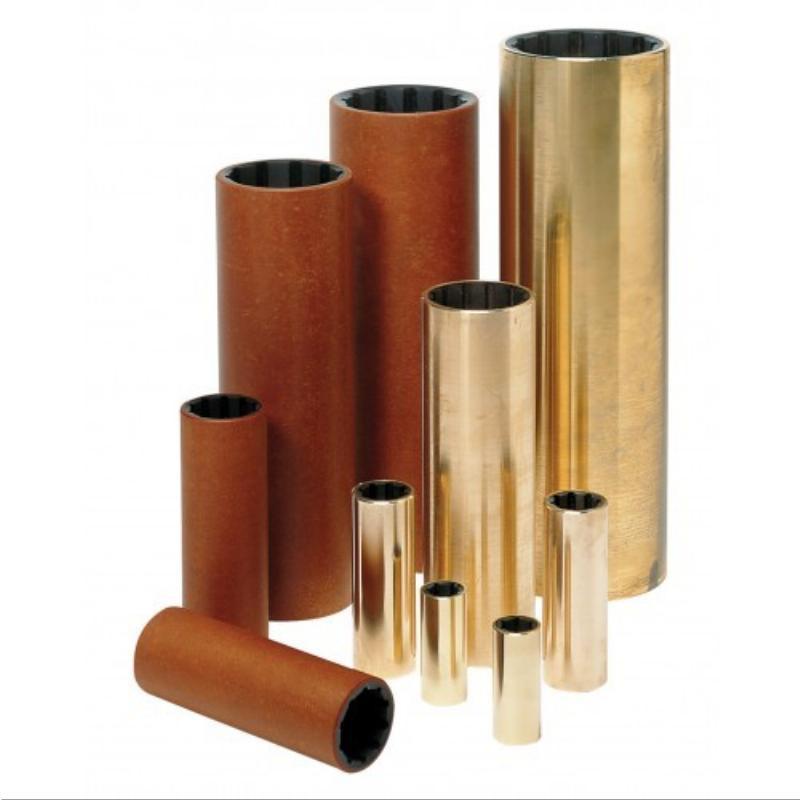

This is a VETUS water lubricated cutlass bearings in Type RL.
These cutless bearings have a polyurethane-rubber lining.
The outer bushings are made of either brass or phenolic resin. Phenolic resin is lightweight, cannot corrode and can easily be replaced.
These bearings are available for shaft diameters between Ø 20 and Ø 100 mm and from Ø 1” through Ø 4”.
OVERALL PRODUCT SIZE (L/W/H): 128mm x 59mm x 60mm
See all complete specifications of TYPE RL on the table below.

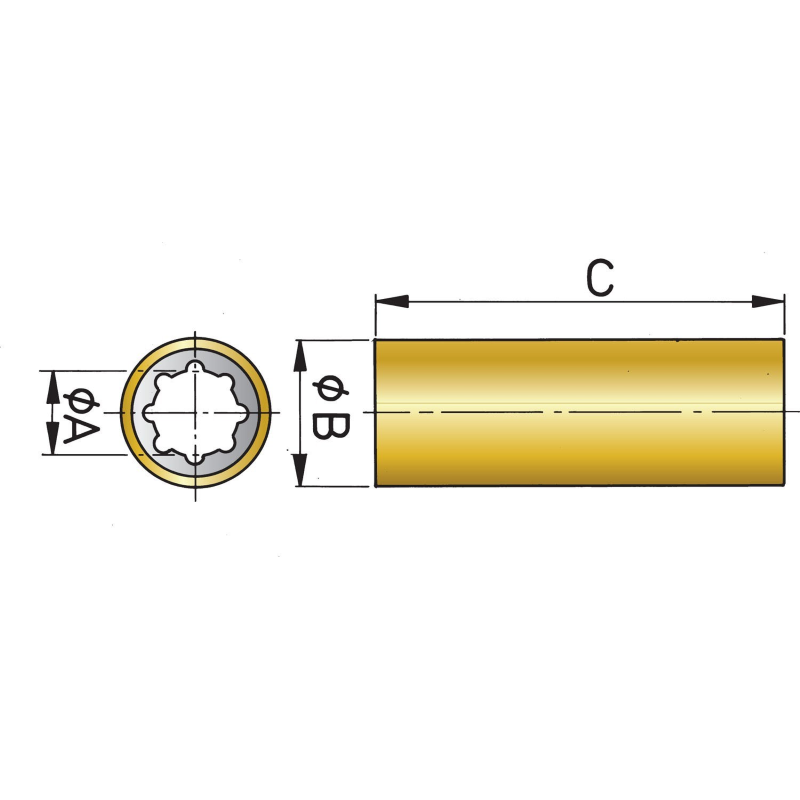

PRODUCT NUMBER | SHAFT DIAMETER SIZE (A) | SHELL SIZE (B) |
LENGTH SIZE (C) |
RL2540 | 25mm | 40mm | 100mm |
RL3045 | 30mm | 45mm | 120mm |
RL3550 | 35mm | 50mm | 140mm |
RL4055 | 40mm | 55mm | 160mm |
RL4565 | 45mm | 65mm | 180mm |
RL5070 | 50mm | 70mm | 200mm |
RL6080 | 60mm | 80mm | 240mm |
RL7090 | 70mm | 90mm | 280mm |
RL8010 | 80mm | 100mm | 320mm |
RL9011 | 90mm | 110mm | 360mm |
RL1012 | 100mm | 125mm | 400mm |
Rubber bearing
