Description
Vetus Rubber Bearing Phenolic Shell – RL Type
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.

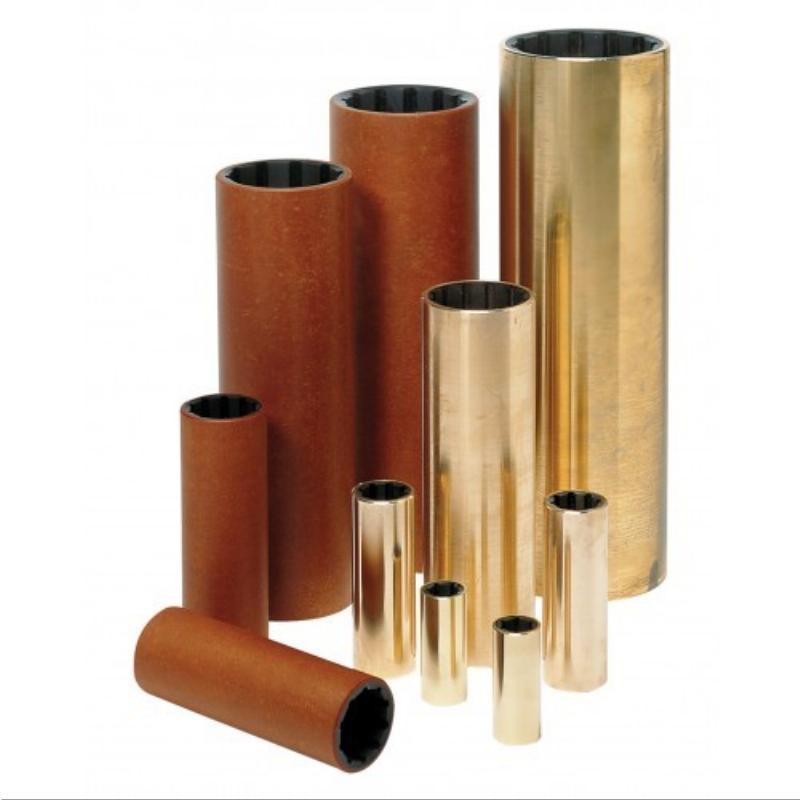

Vetus Rubber Bearing Phenolic Shell – Type RL.
These cutless bearings have a polyurethane-rubber lining. The outer bushings are made of either brass or phenolic resin. Phenolic resin is lightweight, cannot corrode and can easily be replaced.
These bearings are available for shaft diameters between Ø 20 and Ø 100 mm and from Ø 1” through Ø 4”.
Part Number Shaft Diameter (A) Shell Size (B) Length (C)
VTS-RLPH 1″ 1-1/2″ 4″
VTS-RL118PH 1-1/8″ 1-5/8″ 4-1/2″
VTS-RL114PH 1-1/4″ 1-3/4″ 5″
VTS-RL138PH 1-3/8″ 1-7/8″ 5-1/2″
VTS-RL112PH 1-1/2″ 2″ 6″
VTS-RL134PH 1-3/4″ 2-3/8″ 7″
VTS-RL2PH 2″ 2-5/8″ 8″
VTS-RL214PH 2-1/4″ 3″ 9″
VTS-RL212PH 2-1/2″ 3-1/4 10″
VTS-RL234PH 2-3/4″ 3-3/4″ 11″
VTS-RL3PH 3″ 4″ 12″
VTS-RL312PH 3-1/2″ 4-1/2″ 14″
VTS-RL4PH 4″ 5″ 16″
Rubber bearing 1" s=1 1/2", l=4", phenolic 60x59x128
