Vetus Rubber Bearing Phenolic Shell – Type RL
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.

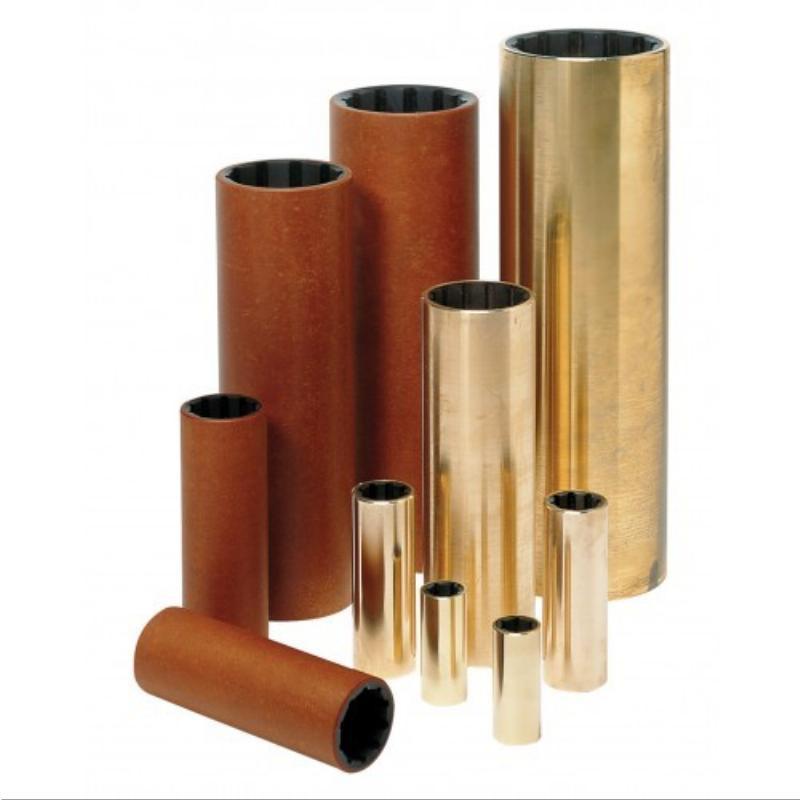

Vetus Rubber Bearing Phenolic Shell – Type RL.
These cutless bearings have a polyurethane-rubber lining. The outer bushings are made of either brass or phenolic resin. Phenolic resin is lightweight, cannot corrode and can easily be replaced.
These bearings are available for shaft diameters between Ø 20 and Ø 100 mm and from Ø 1” through Ø 4”.

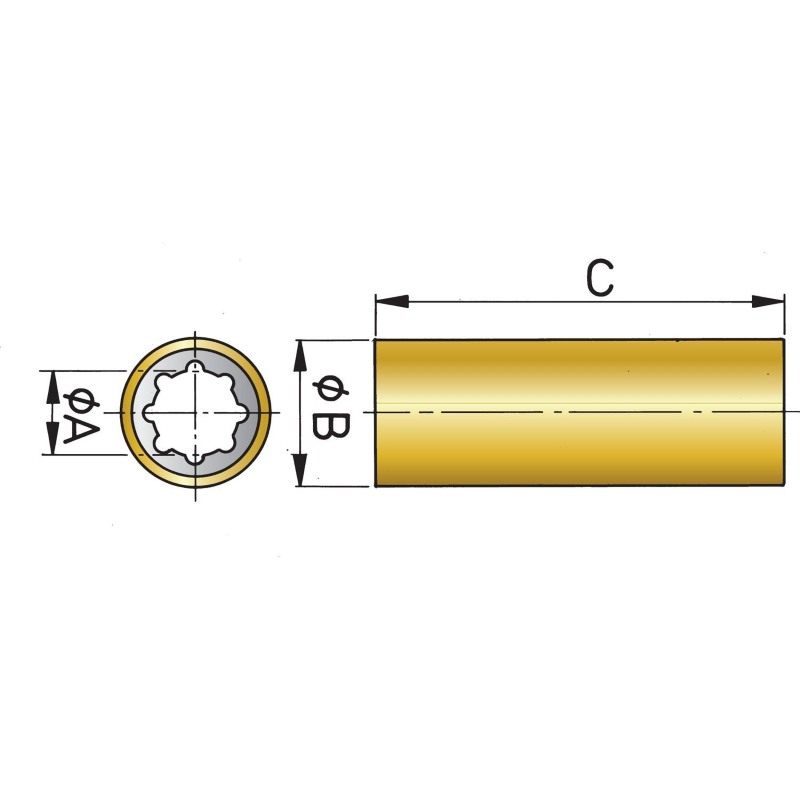

Part Number Shaft Diameter(A) Shell Size (B) Length(C)
VTS-RL2540PH 25mm 40mm 100mm
VTS-RL3045PH 30mm 45mm 120mm
VTS-RL3550PH 35mm 50mm 140mm
VTS-RL4055PH 40mm 55mm 160mm
VTS-RL4565PH 45mm 65mm 180mm
VTS-RL5070PH 50mm 70mm 200mm
VTS-RL6080PH 60mm 80mm 240mm
VTS-RL7090PH 70mm 90mm 280mm
VTS-RL8010PH 80mm 100mm 320mm
VTS-RL9011PH 90mm 110mm 360mm
Rub. bearing for shaft 25mm, D 40mm, l100mm phenolic 60x59x128
