Vetus Rubber Bearing Phenolic Shell – Type RULAG
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Vetus Rubber Bearing Phenolic Shell – Type RULAG.

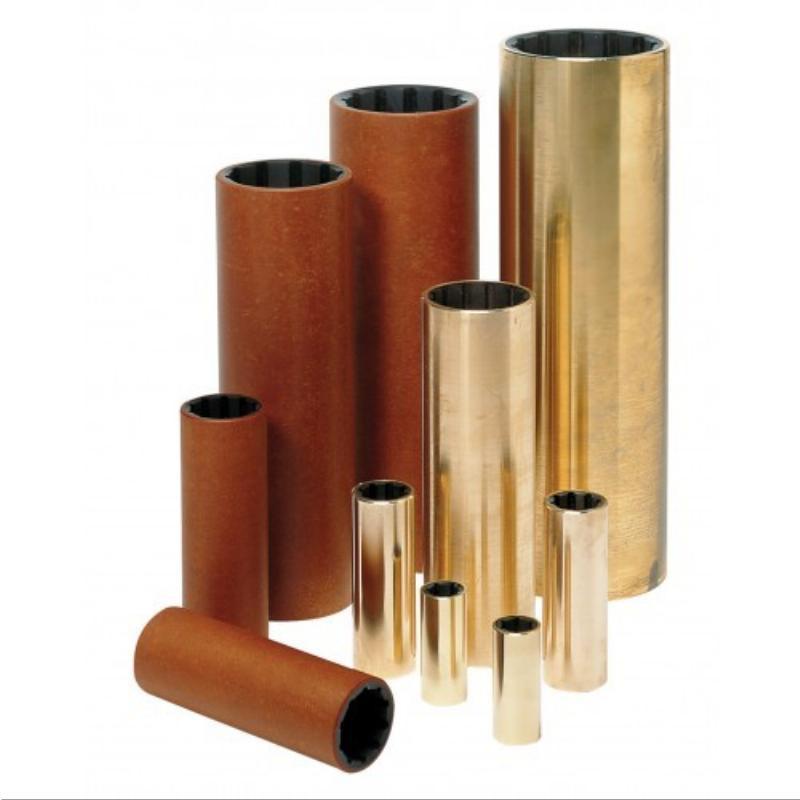

These cutless bearings have a polyurethane-rubber lining. The outer bushings are made of either brass or phenolic resin. Phenolic resin is lightweight, cannot corrode and can easily be replaced.
These bearings are available for shaft diameters between Ø 20 and Ø 100 mm and from Ø 1” through Ø 4”.

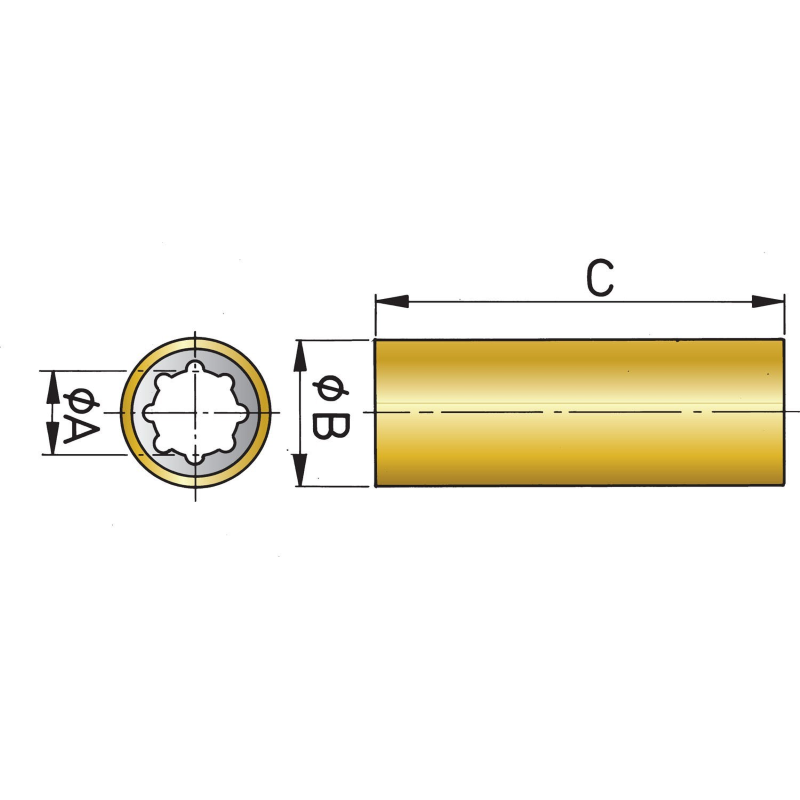

Part Number Shaft Diameter (A) Shell Size (B) Length (C)
VTS-RULAG30PH 30mm 1-3/4″ 127mm
VTS-RULAG35PH 35mm 1-7/8″ 140mm
VTS-RULAG40PH 40mm 2-1/8″ 160mm
VTS-RULAG45PH 45mm 2-3/8″ 180mm
VTS-RULAG50PH 50mm 2-5/8″ 200mm
VTS-RULAG60PH 60mm 3″ 240mm
VTS-RULAG70PH 70mm 3-1/2″ 280mm
VTS-RULAG80PH 80mm 4″ 320mm
Rubber bearing 30mm (laminated phenolic housing) 75x74x180
