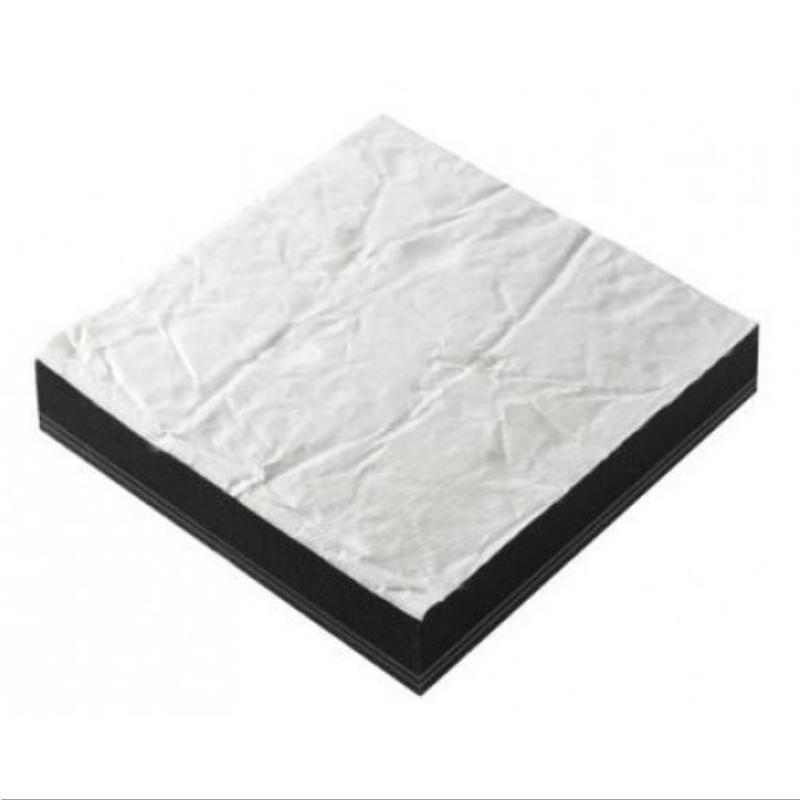

VETUS Sound Insulation Sheet – Prometech Double / PT225S

Description

VETUS Sound Insulation Sheet – Prometech Double / PT225S

NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.

This product is is designed to absorb as much sound as possible.
It is the top of the range product line with double damping layers.

The top of the range product line. Rated Class 0 fire resistant and including double damping layers, this product is the choice for the most demanding customers; optimal noise reduction and safety in the engine compartment.

Available in 25, 45, or 60 mm thick sheets with white or silver glass cloth facing and self-adhesive backing.

OVERALL PRODUCT SIZE (L/W/H): 5mm x 598mm x 993mm

See complete specifications on the table below.




PRODUCT NUMBER	FACING	WEIGHT	TOTAL THICKNESS	BASE SIZE	BACK
PT225S	SILVER GLASS CLOTH	7.2kg	25	1000mm x 600mm	SELF-ADHESIVE
PT225W	WHITE GLASS CLOTH	7.2kg	25	1000mm x 600mm	SELF-ADHESIVE
PT245S	SILVER GLASS CLOTH	7.8kg	45	1000mm x 600mm	SELF-ADHESIVE
PT245W	WHITE GLASS CLOTH	7.8kg	45	1000mm x 600mm	SELF-ADHESIVE
PT260S	SILVER GLASS CLOTH	9.2kg	60	1000mm x 600mm	SELF-ADHESIVE
PT260W	WHITE GLASS CLOTH	9.2kg	60	1000mm x 600mm	SELF-ADHESIVE






—

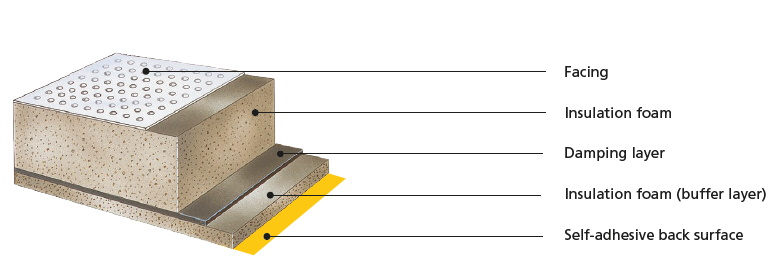

BASE MATERIALS

The range is built around a number of base materials.

Various compositions of these base materials form the four main product lines, which are available in various sheet thicknesses.



The sound absorption coefficients of both base foam materials are tested according to ISO 10534. Guaranteed fire resistance – Class 0

The ‘BS476 Class 0’ fire resistance rating is the most demanding rating on the market today. To achieve class 0 the product must achieve:

• BS476 part 7 – Surface spread of flame, Class 1
• BS476 part 6 – Fire propagation, Index I <12 and i1<6

This means that the material does not spread flames and limits the amount of heat released from the surface during a fire.

Soundinsulation 25mm Prometechdouble, silver 30x600x1000
