Description

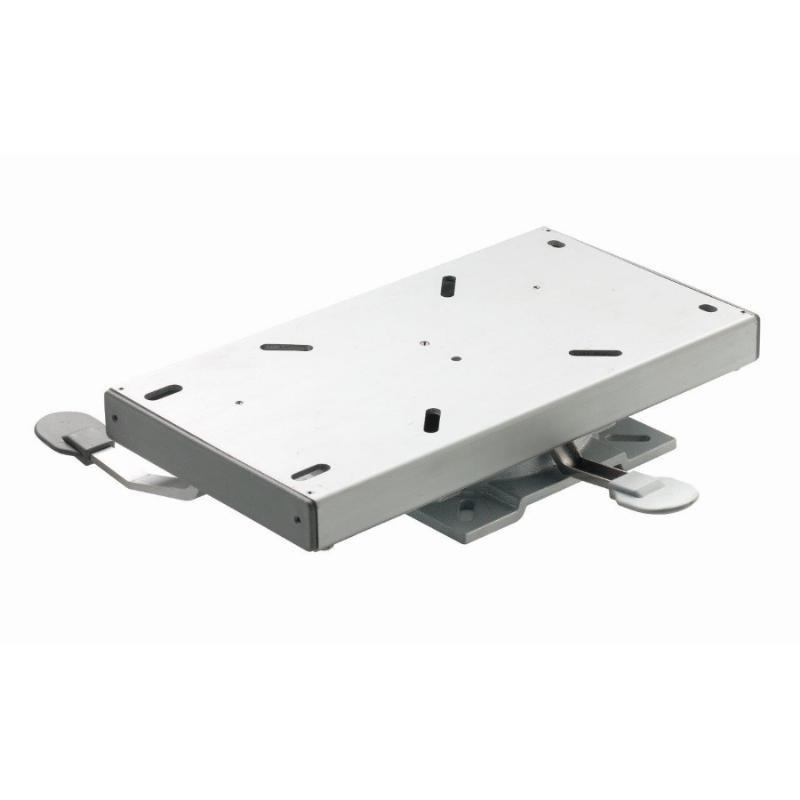

VETUS Swivel with Slide / PCBSR
- with operating controls on the same side
- with controls on opposing sides
This is a Vetus swivel with slide made with marine grade aluminium and is specifically designed for direct mounting of the seat to a box or other structure.
Swivel turns through 360 degrees and the swivel has 7 locking positions through a 135mm travel.
It can suit seats with a standard 7″ square mounting pattern, or a slide mounting pattern.

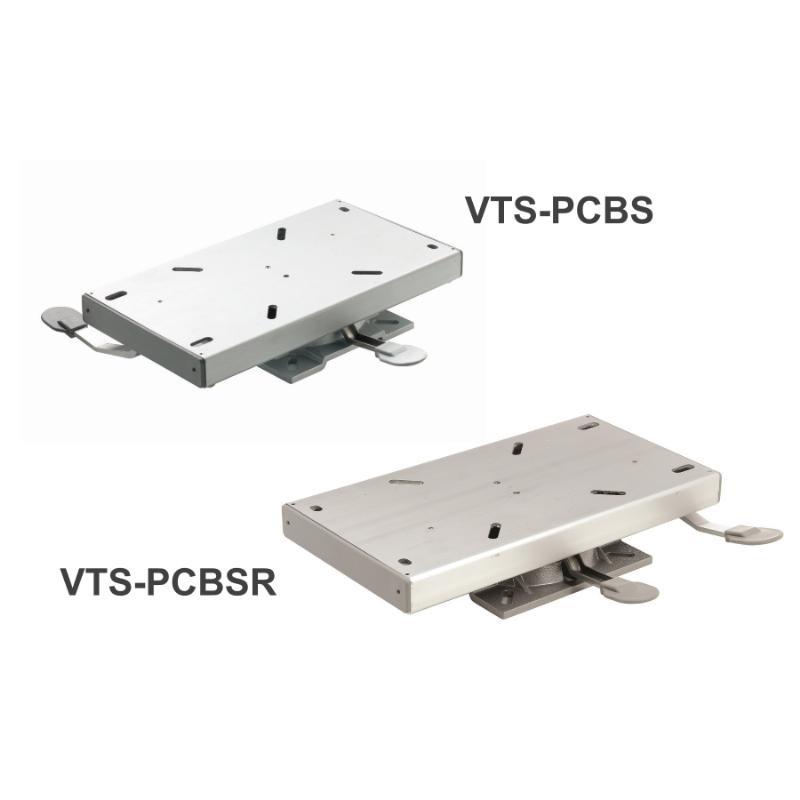

Available in two (2) models:
(See complete specifications on the table below.)
PRODUCT TYPE | HEIGHT (H) | HOLE PATTERN | BASE Ø | WEIGHT | LOAD STATIC | LOAD DYNAMIC | LEVER CONTROLS POSITION |
PCBS | 70mm | R/S | S | 2.5kg | 204kg | 102kg | LEFT AND RIGHT SIDE |
PCBSR | 70mm | R/S | S | 2.5kg | 204kg | 102kg | ONE SIDE ONLY |
OVERALL PRODUCT SIZE (L/W/H): 343mm x 269mm x 80mm

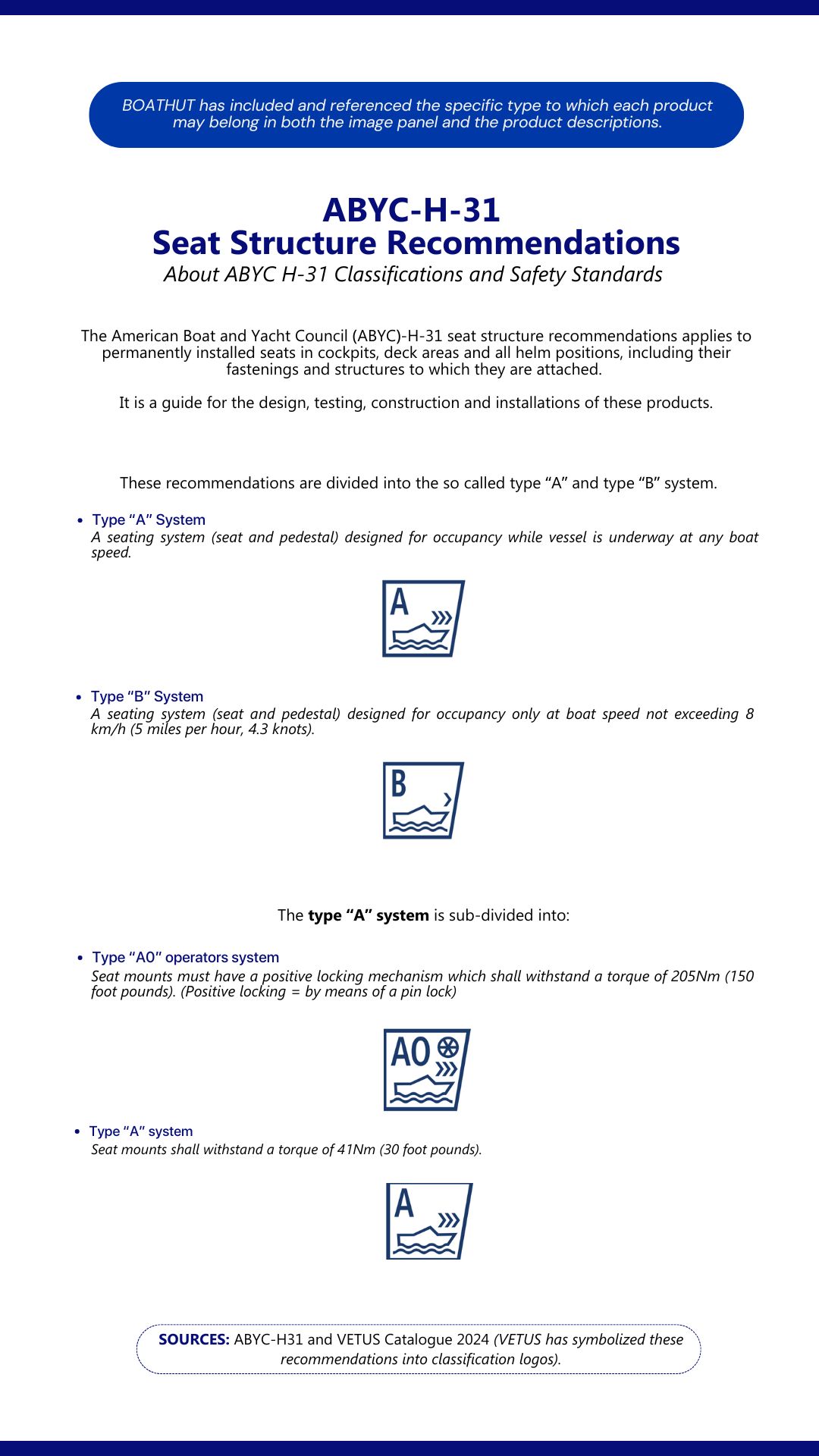

This product is A Class and ABYC recommended as it meets the boat seat standards.
NOTE – Please call us to check availability & leadtimes prior to ordering as not all Vetus items are carried in stock.
Swivel 360° rotatable (R) w. 7 locking positions w slide 80x269x343
